CoolMaster PRM - Programmers Reference Manual

HVAC Lines

CoolMasterNet supports eight HVAC Lines labeled as L1 ... L8, intended for connection to various HVAC systems. All eight HVAC Lines can be used simultaneously (except L1 with L5 and L2 with L6) and independently according to CoolMasterNet configuration. Most of the HVAC Lines can support a number of HVAC Types as specified in the table below, but one at a time, according to configuration of the specific Line.



HVAC Manufacturer	Acronym	L1	L2	L3	L4	L5	L6	L7	L8
Daikin	DK	v	v
Mitsubishi Electric	ME	v	v
Toshiba	TO	v	v
Panasonic	PN	v	v
Hitachi	HT	v	v
LG	LG			v	v	v	v	v
Mitsubishi Heavy Industries	MH			v	v	v	v	v
Sanyo	SA			v	v	v	v	v
Gree	GR			v	v	v	v	v
Midea	MD			v	v	v	v	v
Kentatsu	KT			v	v	v	v	v
Trane	TR			v	v	v	v	v
Chigo	CG			v	v	v	v	v
Fujitsu	FJ								v
Samsung	SM			v	v	v	v	v
Tadiran Inverter	TI			v	v	v	v	v
Meitav	MT			v	v	v	v	v
Haier	HA	v	v
Blue Star	BSM			v	v	v	v	v
Tica	TICA			v	v	v	v	v





HomeAutomation/BMSProtocols

CoolMaster supports several Home Automation/BMS protocols.

HomeAutomation/BMSProtocol	Acronym	Line(s) Port
KNX	KNX	L3
PlugBus (CoolHub)	CH	L3,L4,L5,L6,L7
HDL buspro 4-wire	HDL	L3,L4,L5,L6,L7
HDL buspro IP		Ethernet
ModBus RTU CoolGate 4	CG4	L3,L4,L5,L6,L7
ModBus RTU CoolGate 5	CG5	L3,L4,L5,L6,L7
ModBus IP		Ethernet
SDDP		Ethernet
ASCII I/F		RS232, Ethernet
CoolRemote		Ethernet

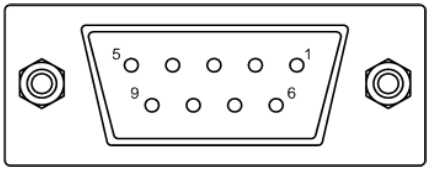

RS232 Port

DB9 Pin	Signal Level	Description
2	±12V	TxD (Data from CoolMasterNet to DTE)
3	±12V	RxD (Data from DTE to CoolMasterNet)
5	GND	Ground
1,4,6,7,8	Not Connected



The gender and pinouts of the RS232 cable supplied with CoolMasterNet are suitable for connection to the PC RS232 port directly or via a standard RS232 to USB adapter. Maximal length of the RS232 Cable should not exceed 25m. By default, RS232 Interface is dedicated to ASCII I/F. The default CoolMasterNet RS232 Port settings are:

• Baud Rate 9600
• Data Bits 8
• Parity Control None
• Stop Bits 1 Flow
• Control None



Ethernet

CoolMasterNet incorporates an IEEE 802.3 compatible 10/100 Mb/s Ethernet port supported via RJ45 connector.
Below are the main port features.

Parameter	Value	Notes
Max Ethernet Cable Length	137m	CAT5 twisted pair cable
Bit Rate	10/100 Mb/s
Supported Ethernet Protocols	10BASE-T/100BASE-TX
Protocol Auto-Negotiation	Enabled	Against Link Partner



RJ45 connector comprises Link and Activity indication LEDs providing the following statuses.

Led	Color	Function
Link Led	Green	ON for good link OFF for no link
Activity Led	Orange	Blink for Tx/Rx Activity



The Ethernet port is used by a number of protocol modules available in CoolMasterNet · ASCII I/F (via ASCII I/F IP Server)

• Modbus IP
• HDL buspro IP
• SDDP
• CoolRemote

Network settings of the CoolMasterNet are controlled with ifconfig command.



ASCII I/F IP Server

ASCII I/F IP Server referenced as aserver is a classic row TCP/IP socket server. aserver has the following default characteristics:

Maximal number of simultaneous connections	4
Default TCP/IP port	10102
Promptcharacter >	enabled



aserver can be configured with set command.



Modbus IP

See Modbus Integration Guidelines document.

CoolRemote cloud connection

CoolMasterNet is constantly maintaining a connection with the CoolRemote cloud server once TCP/IP networking with internet access is established. CoolRemote connection status is displayed on LCD screen by the cloud icon in the bottom right corner of the screen.

No cloud icon	No TCP/IP Networking
	Connected - Idle
	Connected - Communicating
	Disconnected - with error code



ModBus RTU

CoolMasterNet can be used as a ModBus RTU slave device working in accordance with Modbus-IDA.ORG "MODBUS over serial line specification and implementation guide". RS485 default frame format is

• Baud Rate 9600 Data Bits 8
• Parity Control None
• Stop Bits 1
• Flow Control None



GC4

CG4 is based on ModBus RTU protocol. Its address map is similar to CoolGate device, previously manufactured by CoolAutomation (see CoolGate PRM for more information). CG4 protocol can be used for backward compatibility.



GC

See Modbus Integration Guidelines document.

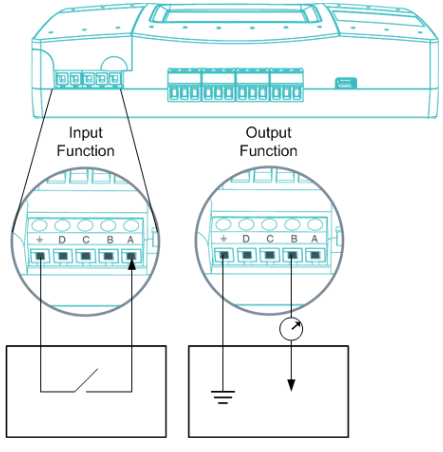

GPIO

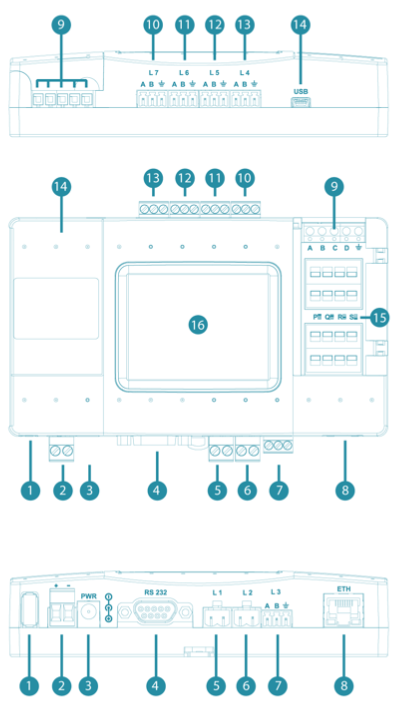

CoolMasterNet supports four GPIO marked as A B C D (see Layout ). GPIO can be in Input or Output mode depending on it's functionality





Parameter	GPIO A	GPIO B	GPIO C	GPIO D
Input Low Voltage (V IL)	<1V	<1V	<1V	ADC
Input High Voltage (V IH)	>2.4V	>2.4V	>2.4V	ADC
Output High Voltage (V OUT HI)	3.3V	3.3V	3.3V	3.3V
Max Output Current (I OUT)	20mA	20mA	20mA	20mA
Pull Up	5.6K	5.6K	5.6K	N.A.

Control of the GPIO functionality is done with gpio command.



USB

CoolMasterNet incorporate USB Device and USB Host ports. USB Device port is used for maintenance operations.



Power

CoolMasterNet can be powered from different power sources:

• AC/DC adapter supplied with CoolMasterNet
• 12-24V DC from HVAC or other equipment
• USB Device port

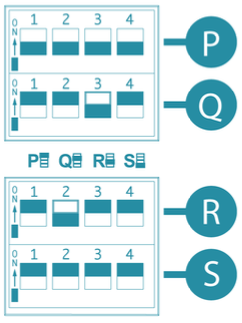

DIP Switches are located behind the small access door at the upper right side of the CoolMasterNet.



Switch	On	Off
P1, P2	Link L6,L7 and enable polarity auto-detection on L7	Separate L6,L7
P3	L6 Enabled, L2 Disabled	L2 Enabled, L6 Disabled
P4	Production Mode	Normal Operation Mode





DIP Switches Q,R

DIP Switched Q and R are used to adjust HVAC Lines L1 and L2 internal parameters to meet specific HVAC type requirements.

HVAC Type	DIP Switch Q - HVAC Line L1
	Q1	Q2	Q3	Q4
DK	ON	OFF	ON	OFF
ME	OFF	OFF	OFF	OFF
TO	OFF	ON	OFF	ON
SA	OFF	ON	OFF	ON
PN	OFF	ON	OFF	ON
HT	OFF	ON	OFF	ON
HA (P,Q)	OFF	ON	OFF	ON



HVAC Type	DIP Switch R - HVAC Line L2
	Q1	Q2	Q3	Q4
DK	ON	OFF	ON	OFF
ME	OFF	OFF	OFF	OFF
TO	OFF	ON	OFF	ON
SA	OFF	ON	OFF	ON
PN	OFF	ON	OFF	ON
HT	OFF	ON	OFF	ON
HA (P,Q)	OFF	ON	OFF	ON





Dip Switch S



Switch	On	Off
S1, S2	Enable DC Output on HVAC Line L1	Disable DC Output on HVAC Line L1
S3, S4	Enable DC Output on HVAC Line L2	Disable DC Output on HVAC Line L2





CoolMasterNet provides a simple and comprehensive ASCII I/F Protocol, based on text (ASCII) strings, representing verbal commands and responses . ASCII I/F implemented in CoolMasterNet is fully backward compatible with previous versions of CoolAutomation products, but has a number of significant extensions and improvements mainly aimed to support additional CoolMasterNet functionality. ASCII I/F can be utilized via RS232 interface (see RS232 Port) or TCP/IP Server.



General Protocol Definitions



Messaging

Communication between DTE and CooLinkNet via ASCII I/F is based on text (ASCII) strings. A Communication example is shown below



>ls L2	<- Command	DTE to CooLinkNet
L2.102 OFF 20C 27C Auto Cool OK - 0 L2.103 OFF 20C 24C Low Auto OK - 0	<- Response	CooLinkNet to DTE
OK	<- Exit code
>	<- Prompt



Command string sent to CooLinkNet must be terminated with <CR> (carriage return 0x0D) <LF> (line feed 0x0A) sequence or a single <CR> character. Strings from CooLinkNet (except prompt character) are always terminated with <CR><LF>. Commands are case-sensitive and should not contain leading or trailing spaces. The only separator between the command name and the command parameter(s) is space (0x20) character. Configuration parameter echo (see set command), defines if characters sent to CooLinkNet via RS232 interface are echoed back or not. If echo is not zero - characters are echoed. In case of RS232 interface, prompt character '>' is unconditionally sent by CooLinkNet. In case of ASCII Server prompt sending is configurable.



Exit Codes



Numeric	Verbose	Description
0	OK	Command executed successfully
1	No UID	UID not found
2	No Strict UID	UID must be precise
3	Bad Format	Command format is wrong
4	Failed	Command execution failed
5	Line Unused	Line is unused
6	Unknown Command	Command is unknown
7	Bad HVAC Line	Line number is wrong
8	Bad Function	Wrong function
9	Bad Line Type	Wrong line type definition
10	Bad Parameter	Command parameter is wrong
11	OK, Boot Required!	Command execution will be effective after reboot
12	Bad GPIO	Wrong GPIO
13	SDDP Disabled	SDDP module is disabled, enable it to proceed
14	Virtual Address In Use	Virtual address already in use
15	Bad Property	Wrong property
16	Number Of Line Exceeded	Can't define more line types
17	Warning! DIP Switch State Incorrect	Dip swith state is incorrect for defined line type
18	SDDP Not Initialized	SDDP is enabled, but Ethernet link is still down
80	ModBus Error: 80	No response from the addressee
81	ModBus Error: 81	Big timeout between bytes in received message
82	ModBus Error: 82	Small timeout between bytes in received message
83	ModBus Error: 83	Received message with internal timeout
84	ModBus Error: 84	Received message is too big
85	ModBus Error: 85	CRC error in received message
86	ModBus Error: 86	ModBus exception in response
100	Collision	Collision in sent command on HVAC line
101	Unsupported Feature	Unsupported command or command's parameter for this HVAC line
102	Incorrect Indoor Type	Chosen Indoor Unit doesn't support this command or command's parameter
103	No ACK From Indoor	Indoor Unit didn't acknowledged sent command
104	Timeout On Received	No response from Indoor Unit
105	CS Error In Received Message	Check Sum error in received message
106	Line Init In Progress...	Can't show lines status due to initialization process
107	Line Error	Some error on the HVAC line
108	Feed Disabled	Indoor Unit can't receive measured ambient temperature due to its switch position
150	HDL Not Initialized	HDL line was not defined or ethernet cable is unplugged
151	HDL DB Overflow	HDL Data Base is full, can't add new configuration
152	HDL Eth Disabled	HDL over ethernet disabled
200	UID Not Found	Specified Indoor Unit not found in Data Base
201	Strict UID Not Found	Specified Indoor Unit by uid strict not found in Data Base
202	Indoor Removed	Indoor Unit removed from Data Base
203	DB Overflow	Indoor Units Data Base is full, can't add new one
204	Group DB Overflow	Group Data Base is full, can't add new group
205	VA DB Overflow	Virtual address Data Base is full, can't associate Indoor Unit with new virtual address
206	FDB5 Overflow	Properties Data Base is full, can't add new property
250	Link DB Overflow	Link Data Base is full, can't link new CoolPlug device with Indoor Unit
251	No CooLinkHub Line	CoolHub line not defined, define it to proceed
252	Auto Visibility Failed	During link creation there was an error on adding visibility props
253	Link Already Exists	CoolPlug device already linked, delete previous link before creating the new one
307	KNX DB Overflow	KNX Data Base is full, can't add new group
309	KNX Not Connected	No connection with KNX chip
310	KNX Line Not Started	KNX Line Not defined



UID

UID is used to identify an Indoor Unit or a set of Indoor Units. UID has the following format

Line Number	Dot	Indoor number
Ln	.	X	YY



• Line is a CoolMasterNet HVAC Line number like L1, L2,... L* means "any line". To provide backward compatibility with CoolMaster or CooLink devices, Line number can be omitted from the UID.
• Dot is a separator between Line number and Indoor number. If Line number is omitted or has a L* form, dot must also be omitted.
• Indoor number is an Indoor Unit number in HVAC system. Indoor number can be '*' that means "any"

Examples:

L1.102 -> Indoor Unit 102 on line L1

L2.003 -> Indoor Unit 003 on line L2

L*100 -> Set of Indoor Units 100 on all lines

L301** -> Set of Indoor Units 1xx on line L3 (L3.100, L3.101,...)

L4 -> All Indoors on line L4

L* -> All Indoors on all lines

203 -> Similar to L*203 (only for backward compatibility)





UID_STRICT

In some cases only specific Indoor Unit had to be referenced by UID. In this case it is required to use UID_STRICT in format Ln.XYY where '*' usage is prohibited.



HVAC systems with 4-digit Indoor unit numbers

For HVAC systems with 4-digit Indoor unit numbers: N1N2 - N3N4, the first two digits N1 N2 in range 00-15, will be encoded into X part of the UID according to the following table. The last two digits N3 N4 will be equal to YY part of the UID.



N1N2 - N3N4	X YY	Example for line L1
		Indoor unit number	UID
00 - N3N4	0 N3N4	00-12	L1.012
01 - N3N4	1 N3N4	01-12	L1.112
02 - N3N4	2 N3N4	02-12	L1.212
03 - N3N4	3 N3N4	03-12	L1.312
04 - N3N4	4 N3N4	04-12	L1.412
05 - N3N4	5 N3N4	05-12	L1.512
06 - N3N4	6 N3N4	06-12	L1.612
07 - N3N4	7 N3N4	07-12	L1.712
08 - N3N4	8 N3N4	08-12	L1.812
09 - N3N4	9 N3N4	09-12	L1.912
10 - N3N4	A N3N4	10-12	L1.A12
11 - N3N4	B N3N4	11-12	L1.B12
12 - N3N4	C N3N4	12-12	L1.C12
13 - N3N4	D N3N4	13-12	L1.D12
14 - N3N4	E N3N4	14-12	L1.E12
15 - N3N4	F N3N4	15-12	L1.F12



Besides generic UID encoding rules, described above, there are special rules applicable for specific HVAC systems.



UID encoding for Hitachi (HT) HVAC system

HT Indoor Unit number		UID for line L1
RD	ADDR
00	00 - 63	L1.000 - L1.063
01	00 - 63	L1.000 - L1.163
02	00 - 63	L1.000 - L1.263
03	00 - 63	L1.000 - L1.363
04	00 - 63	L1.000 - L1.463
05	00 - 63	L1.000 - L1.563
06	00 - 63	L1.000 - L1.663
07	00 - 63	L1.000 - L1.763
08	00 - 63	L1.000 - L1.863
09	00 - 63	L1.000 - L1.963
10	00 - 63	L1.000 - L1.A63
11	00 - 63	L1.000 - L1.B63
12	00 - 63	L1.000 - L1.C63
13	00 - 63	L1.000 - L1.D63
14	00 - 63	L1.000 - L1.E63
15	00 - 63	L1.000 - L1.F63
16	00 - 35	L1.000 - L1.199
17	00 - 35	L1.000 - L1.299
18	00 - 35	L1.000 - L1.399
19	00 - 35	L1.000 - L1.499
20	00 - 35	L1.000 - L1.599
21	00 - 35	L1.000 - L1.699
22	00 - 35	L1.000 - L1.799
23	00 - 35	L1.000 - L1.899
24	00 - 35	L1.000 - L1.999
25	00 - 35	L1.000 - L1.A99
26	00 - 35	L1.000 - L1.B99
27	00 - 35	L1.000 - L1.C99
28	00 - 35	L1.000 - L1.C99
29	00 - 35	L1.000 - L1.D99
30	00 - 35	L1.000 - L1.E99
31	00 - 35	L1.000 - L1.F99





Configuration Commands

Synopsis and description of the commands listed below have the following notation:

• Parameters or parameters grouped in angle brackets " < > " are mandatory.
• Parameters or parameters grouped in square brackets " [ ] " are optional and can be omitted.
• The curly braces ( ) are used to denote group inside braces
• The " | "character between parameters inside brackets means OR.



Command	Description
set	Query or change CoolMaster setting(s)
Line	Query or change HVAC Line (s) status and configuration.
ifconfig	Query or configure Ethernet network settings
boot	Boot of CoolMaster
props	Query or change CoolMasterNet internal database of Indoor Unit properties
link	Control link operation in CoolMaster
simul	Simulate <CNT> Indoor Units on HVAC Line <Ln>.
gpio	Query or configure GPIO functionality.
info	Query CollMasterNet dip switches position and DC output on lines L1 and L2.
modbus	Query or change CoolMasterNet ModBus configurations.
ad	Forward ASCII I/F command to CMNET-GR-GMV5 device connected to GMV5 line.
plug	Forward ASCII I/F command to CoolPlug device connected to CH line
knx	Query or change KNX status and configuration
hdl	Query or change HDL status and configuration
sddp	Configure Control4® Simple Device Discovery Protocol (SDDP) module.



set

Synopsys

set [<SETTING> <VLAUE>]

set defaults

DESCRIPTION:

Query or change CoolMasterNet setting(s). Without parameters set command will list all supported settings and their values. To change the setting use the format with <SETTING> and <VALUE>.

Some settings are read-only (RO) and can not be changed. set defaults will load default values to all settings

set defaults will load default values to all settings



<Setting>	Mode	Printed as	Value *	Description
S/N	RO	S/N		CoolMaster Serial Number
version	RO	version	X.Y.Z	CoolMaster Firmware version
app	R/W	application	string	CoolMaster application
baud	R/W	baud	1200...115200	RS232Interfacebaudrate.Default:9600
echo	R/W	echo	0 or 1	RS232 Interface echo control. 0 - disabled, 1 - enabled
verbos	R/W	verbos	0 or 1	Exit Code format. 0 - numeric, 1 - verbose
aserver port	R/W	aserver port	integer	aserver TCP port. Default: 10102
aserver prompt	R/W	aserver prompt	0 or 1	aserver prompt control
deg	R/W	deg C/F	C/c or F/f	Temperature scale Celsius or Fahrenheit
melody	R/W	melody	string	Power Up melody. The value is printed as melody name, to change the melody its number should be typed. set melody will list supported melodies and their numbers.
filter visi	R/W	Filter	visi 0 or visi 1 or visi -	visi - Indoor Units visibility regarding props command. [-] - props visibility applies only to LCD. [1] - props visibility applies to LCD and status/control commands. [0] - props visibility logic is inverted and it applies to LCD and status/control commands
HVAC lines	RO	HVAc Lines	0....8	Allowed number of HVAC lines. Can be changed with encoded activation string.

* - Bold values are defaults.



Examples:



Disable echo:
>set echo 0
OK

Change aserver TCP port:
>set aserver port 12345
OK

Load defaults:
>set defaults
OK

Apply props visibility to status/control commands:
>set filter visi 1
OK, Boot Required!

Set RS232 Interface to 19200, 8 data bits, even parity, 1 stop bit:
>set baud 19200 8E1
OK

Set temperature scale to Fahrenheit:
>set deg f
OK

Set PowerUp melody to 3:
>set melody 3
OK

---



line

Synopsys

line

line <PROPERTY> <Ln> <VLAUE>

DESCRIPTION:

Query or change HVAC Line(s) status and configuration. In format without parameters line command will provide information about current Line statuses. The second format is used to change write-enabled properties.



<Property>	Mode	Value	Description	Notes
master	R/W	0 or 1	CoolMasterNet acts as a Master device	DK, LG, SA, TO, PN only
simul	R/W	integer	Simulate given number of Indoor Units. To disable simulation use "0". Simulation is persistent (not disabled after power reset) By default the simulation model is: with failures, no ventilation units, no input/output units. To enable/disable special conditions use the following flags: +/-flr, +/-vam, +/-io (see example)	Input/Output units for ME only Ventilation units for DK, ME, LG only
myid	R/W	string	CoolMasterNet Own address on given HVAC Line. For ModBus RTU Line myID is a "Slave Device Address"
baud	R/W		Configure UART parameters for given Line. Value format is: <BAUD> <8|9><N|E|O><1|2> For example: 9600 8N1	Where applicable
tx	RO	integer counter	Transmitted messages	Printed as Last/Total Last means since the previous print
rx	RO		Received messages
to	RO		Timeout errors
cs	RO		Checksum errors
col	RO		Collision errors
NAK	RO		NAK errors
haux	R/W	heat or haux	Heat mode treated as Haux mode. This is only for situation when HomeAutomation controller doesn't have Haux support but need to set Haux mode on ThermoPad(s) connected to CH line.	For CoolHub (CH) line only
type	R/W	string	Define line type by acronym. Number of HVAC lines cannot exceed the value of HVAC lines in set command. HomeAutomation/BMS lines don't count as HVAC Lines. To free a line use Unused instead of acronym.	See the full list of HVAC and HomeAutomation/BMS lines supported
scan	R/W	0 or 1	Implicitly detect Indoor Units	ME, HT, SA, TO, PN only
DCOUT	R/W	- or +	Control DC output on L1,L2	DK,ME only
slink	R/W	O/o or N/n	Configure Mitsubishi Heavy SuperLink mode: O - old, N - new MH only ConfigureSamsungmodeltype:O-DVM, N-DVM-S	SM only
[A|B] or [B|A]	RO		Current polarity	Line L7 only



Examples:



Information about current Line statuses:
>line
L1: SA U00/G02 myID:E5
  Tx:732/732 Rx:47227/47227 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
L2: DK Master U00/G07 myID:0B
  Tx:4579/4579 Rx:50633/50633 TO:3/3 CS:0/0 Col:10/10 NAK:0/0
L3: Unused
  Tx:0/0 Rx:0/0 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
L4: Unused
  Tx:0/0 Rx:0/0 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
L5: Unused
  Tx:0/0 Rx:0/0 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
L6: Unused
  Tx:0/0 Rx:0/0 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
L7: MH SLink:N U00/G02 myID:C900 [A|B]
  Tx:20072/20072 Rx:26989/26989 TO:25/25 CS:0/0 Col:1/1 NAK:0/0
OK

Change mode to slave on L4:
>line master L4 0
OK, Boot Required!

Set Line L3 baud rate to 19200, 8 data bits, even parity, 1 stop bit:
>line baud L3 8E1
OK, Boot Required!

Simulate 5 Units on line L2 without failures, no ventilation units and with input/output units:
>line simul L2 5 -flr-vam+io
OK, Boot Required!

Heat mode will be treated as haux for ThermoPads connected to CH line:
>line haux L3 heat
OK, Boot Required!

Make Line L2 Unused:
>line type L2 Unused
OK, Boot Required!

Make Line L2 to work with TO HVAC type:
>line type L2 TO
OK, Boot Required!

HDL Bus Pro on Line L3:
>line type L3 HDL
OK, Boot Required!

---

ifconfig

Synopsys

ifconfig

ifconfig <PROPERTY> <VLAUE>

ifconfig enable | disable

DESCRIPTION:

Query or configure Ethernet network settings. Without parameters, ifconfig command will list the current configuration. To change configuration use format with <PROPERTY> and <VALUE>. Parameter IP can be set to DHCP (DHCP client) or a fixed IP number. In the case of DHCP - Netmask and Gateway values are provided by the DHCP server. By default, CoolMasterNet is configured for DHCP client operation. CoolMasterNet Ethernet module can be enabled or disabled with the corresponding command.



<Property>	Mode	Value	Description
MAC	RO	string	MAC (Media Access Control) address of CoolMasterNet
Link	RO	Up or Down	Indicate whether ethernet link is active
IP	R/W	string	Set fixed (static) IP address or set it to DHCP
Netmask	R/W	string	Set Netmask address in case IP is static
Gateway	R/W	string	Set Gateway address in case IP is static
DNS1	R/W	string	Set prefered DNS address
DNS2	R/W	string	Set alternate DNS address



Examples:



Information about current Line statuses:
>ifconfig
MAC : 28:3B:96:00:02:0F
Link : Up
IP : 192.168.16.108 (DHCP)
Netmask: 255.255.255.0
Gateway: 192.168.16.254
DNS1 : 8.8.8.8
DNS2 : 8.8.4.4
OK

Configure fixed IP:
>ifconfig IP 192.182.1.102
OK, Boot Required!

Configure Gateway address:
>ifconfig Gateway 192.168.1.1
OK, Boot Required!

Configure Netmask:
>ifconfig Netmask 255.255.255.0
OK, Boot Required!

Configure DHCO client operation
>ifconfig IP DHCP
OK, Boot Required!

Disable ethernet:
>ifconfig disable
OK, Boot Required!

Change DNS address:
>ifconfig DNS1 208.67.222.222
OK, Boot Required!



---



boot

Synopsys

boot

boot [n]

DESCRIPTION:

Boot CoolMaster

<N> omitted  - enter boot mode

<N>=2 reset CoolMaster



---



props

Synopsys

props

props <UID_STRICT> <PROPERTY> <VAL>

PROPS DELALL

DESCRIPTION:

Query or change CoolMasterNet internal database of Indoor Unit properties. Changes made in database have no impact on the physical capabilities of related indoor units.
In format without parameters props command will list all stored properties in a table view.



<Property>	Mode	Value	Description	Notes
name	R/W	string	The alternate name of the Indoor Unit to be shown on CoolMasterNet's LCD screen. By default, this property is not defined and UID is shown instead.
visi (visible)	R/W	0 or 1	Defines Indoor Unit visibility on LCD screen. 0 - invisible, 1 - visible. Also depends on the filter setting.	Effective after reboot
fspeed	R/W	<+|->v, l, m, h, t, a	Defines Indoor Unit fan speeds available via LCD touchscreen control and commands to/from KNX bus. + allow, - forbid, v - very low/quiet, l - low, m - medium, h - high, t - top, a - auto.	a number of properties can be combined in one command (see examples below)
mode	R/W	<+|->c, d, f, h, hx, hh, a	Defines Indoor Unit operation modes available via control commands to/from KNXbus.	c - cool, d - dry, f - fan, h - heat, hx - haux, hh - heat & haux, a - auto
elock	R/W	<+|->o, m, t, c, h	Enforced lock to inhibit external changes. CoolMasterNet will override back the changes coming from the external sources. Available locks are: o-ON/OFF, m- operation mode, t-setpoint, c-forced cool mode, h-forced heat mode	a number of locks can be combined in one command.





Examples:



Add name property to Indoor Unit 204 on line L6:
>props L6.204 name Kitchen
OK

Make Indoor Unit 102 on line L1 invisible on LCD:
>props L1.102 visi 0
OK, Boot Required!

Forbid medium and auto fan speeds to Indoor Unit 107 on line L2:
>props L2.107 fspeed -m-a
OK

Allow only cool, fan and haux modes to Indoor Unit 101 on line L1:
>props L1.101 mode +c+f+hx-h-d-hh-a
OK

Inhibit external changes of ON/OFF status and setpoint to unit 101 on line L1:
>props L1.101 elock +o+t
OK

List all stored properties:
>props
UID   |  Name  | Visi  | Modes  | Fspeeds |
------- ---------------- ------ ----------------- -------------
L6.204|Kitchen |   1   | cdfh a |  lmh a  |
L1.102|   -    |   0   | cdfh a |  lmh a  |
L2.107|   -    |   1   | cdfh a |  l h    |
L1.101|   -    |   1   | c f hx |  lmh a  |
OK



---



link

Synopsys

link -L

link ram -R

link <UID1_STRICT><=|~><UID2_STRICT>





DESCRIPTION:

Control link operation in CoolMasterNet. Linking ThermoPad on CoolHub line with Indoor Unit will grant the ThermoPad full control over the Unit.

• In format, without parameters link will list existing links
• link delall - delete all links
• link -L - delete link number L (link numbers displayed in the list of existing links)
• link ram R - create link Data Base for R groups. The operation will take effect after reboot. Use this operation only if default link Data Base is too small.
• link <UID1_STRICT><=|~><UID2_STRICT> - create new link, where UID1 is ThermoPad on CoolHub line and UID2 is Indoor Unit. The command generate invisible property for one of the UID's. <=|~> defines link type: = regular link, the ThermoPad will become invisible; ~ link with haux mode usage, the Indoor Unit will become invisible. Regular link will allow to control the Indoor Unit through UID2, while haux link through UID1.

Examples:



Lists existing links:
>plink L3.082=L1.101
L000: L3.081 <--> L7.096
L001: L3.083 <--> L1.100
OK

Delete link number 0:
>link -0
OK, Boot Required!

Link ThermoPad 082 on line L3 with Indoor Unit 101 on line L1 (regular link):
>link L3.082=L1.101
OK, Boot Required!

Link ThermoPad 080 on line L3 with Indoor Unit 100 on line L1 (haux link):
>link L3.080~L1.100
OK,Boot Required!

Delete all links:
>link delall
OK

Create link Data Base for 60 links:
>link ram 60
OK, Boot Required!



---



simul

Synopsys

simul <Ln> <CNT>

DESCRIPTION:

Simulate <CNT> Indoor Units on HVAC Line <Ln>. If <Ln> is omitted the first not "Unused" HVAC Line will be
taken. Simulation is not persistent and CoolMasterNet reset will terminate it.

Examples:



Simulate 5 Indoor Units on HVAC Line L2:
>simul L2 5
OK



---



gpio

Synopsys

gpio
gpio func <A|B|C|D> <GPIO_FUNCTION>
gpio norm <A|B|C|D> <c|C|o|O>

DESCRIPTION:

Query or configure GPIO functionality. GPIO configurations are persistent (over power reset) and take effect only after reboot.

• Without parameters gpio command provides information about current GPIO configuration in the below format:

>gpio
  A: ALL OFF (HI), N.O.
  B: ALL ON (LO), N.C.
  C: Unused (HI)
  D: Unused (HI)
OK

Field	Value	Description
GPIO Name	A, B, C, D
GPIO Function	Unused	GPIO has no functionality and stays in HiZ input state
	ALL OFF input	Turn all Indoor Units OFF in transition from Normal to Active state
	ALL ON input	Turn all Indoor Units ON in transition from Normal to Active state
	OOS output	On/Off Status. GPIO is in Normal state if all Indoor Units are OFF. GPIO is in Active state if at least one Indoor Units is ON
	ALL INH input	Turn all Indoor Units OFF in transition from Normal to Active state. Hold Indoor Units OFF while GPIO is in Active State. Upon transition from Active to Normal state turn ON Indoor Units that were ON before
	FLRS output	Failure Status. GPIO is in Normal state if all Indoor Units have no failure. GPIO is in Active state if at least one Indoor Units has a failure
Current GPIO Signal Level	(HI)	Signal Level on GPIO is HI
	(LO)	Signal Level on GPIO is LO
Signal Level In Normal State	N.O	Normal state of GPIO is "Normally Open" (HI)
	N.C	Normal state of GPIO is "Normally Closed" (LO)

• gpio func <A|B|C|D> <GPIO_FUNCTION>Configure GPIO function. Supported GPIO functions are listed in table above.
• gpio norm <A|B|C|D> <c|C|o|O> Configure Normal state of GPIO.



Examples:



Disable GPIO A functionality:
>gpio func A Unused
OK, Boot Required!

Set GPIO C function to "ALL OFF":
>gpio func c ALL OFF
OK, Boot Required!

Set Normal state of GPIO A to N.C.:
>gpio norm A C
OK



---



info

Synopsys

info



DESCRIPTION:

Query CollMaster dip switches position and DC output on lines L1 and L2.



>info
 DIP P: | X |OFF| X | X |
 DIP Q: |ON | X |ON | X |
 DIP R: | X | X | X | X |
 DIP S: | X |ON |ON |ON |
 L1 DC- OFF 0V
 L2 DC+ ON 16V
OK

Field		Description
DIP Switch	ON	DIP Switch ON
	OFF	DIP Switch OFF
	X	DIP Switch can't be read
Line DC	+	DCOUT enable command was given to CoolMasterNet
	-	DCOUT disable or no command at all was given to CoolMasterNet
	0v	No voltage detected on the line
	16v	16 volt detected on the line (own or external)
	ON	CoolMasterNet enabled DC output on the line	On reboot, CoolMasterNet will enable DC output only if DCOUT enable command was given andDIP switch S is in correct position, otherwise it will disable DC output
	OFF	CoolMasterNet disabled DC output on the line



---



modbus

Synopsys

modbus [<SETTING> <VALUE>]

DESCRIPTION:

Query or change CoolMasterNet internal database of Indoor Unit properties. Changes made in database have no impact on the physical capabilities of related indoor units.
In format without parameters props command will list all stored properties in a table view.



<SETTING>	Mode	Printed As	Value	Description
IP	R/W	ModBus IP	enable or disable	Enable/Disable ModBus IP server
server port	R/W	Server Port	integer	Change Modbus IP server port
ignore	R/W	CG4 ignore*	r	The setting is togglable, first command will enable the setting, second will disable (see example)
cg4	RO			List CoolGate 4 ModBus addresses of existing (visible with ls command) Indoor Units





Examples:



List current ModBus configuration:
>modbus
ModBus IP : disabled
server port : 502
CG4 ignore : none
OK

enabling ignore settings:
>modbus ignore r
OK

Enable modbus IP:
>modbus IP enable
OK, Boot Required!

Change modbus IP server port
>modbus server port 500
OK, Boot Required!

List CoolGate 4 ModBus addresses of existing Indoor Units:
>modbus cg4
L1.100 --> Hex: 0x1001, Dec: 4097
L1.101 --> Hex: 0x1011, Dec: 4113
OK



---



ad

Synopsys

ad <Ln> <ASCII I/F command>

DESCRIPTION:

Forward ASCII I/F command to CMNET-GR-GMV5 device connected to GMV5 line..



Examples:



Send set command to CMNET-GR-GMV5 on CoolMasterNet line L8:
>ad L8 set
S/N : 12345678
version : 0.0.2
baud rate : 9600
echo :1
verbose : 1
OK
>OK

Query current lines status of CMNET-GR-GMV5 on CoolMasterNet line L8:
>ad L8 line
L1: CAN Speed:50000 myid:728
 Tx:0/0 Rx:0/0 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
L2: CAN Speed:50000 myid:728
 Tx:0/0 Rx:0/0 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
OK
>OK



---



plug

Synopsys

plug <UID_STRICT> <ASCII I/F command>

DESCRIPTION:

Forward ASCII I/F command to CoolPlug device connected to CH line. CoolPlug device is recognized by CoolMasterNet as Indoor Unit referenced by UID.

Examples:



Send set command to CoolPlug device 080 on CoolMasterNet line L3:
>plug L3.080 set
S/N : 00E60100
version : 0.0.2
baud rate : 9600
echo :1
verbose : 1
deg C/F : C
HVAC lines : 1
OK
OK

Query lines status of CoolPlug device 080 on CoolMasterNet line L3:
>ad L8 line
L1: P1P2 A:Master U00/G10 Simul(10) Not Main RC
 Tx:1154/1695 Rx:1153/1694 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
L2: PB Address:0x50(80) 9600_8N1
 Tx:752/1038 Rx:1497/2319 TO:0/0 CS:0/0 Col:0/0 NAK:0/0
OK
OK



---



knx

Synopsys

knx addr <area/line/device>
knx ram <R>
knx funcs
knx group
knx group <GA>[ <func> <direction> <UID>]
knx group dellall
knx group -<G>

DESCRIPTION:

Query or change KNX status and configuration. In format without parameters knx command will provide information about current connection status and number of used groups

• knx addr <area/line/device> - Set KNX physical address in the form of area/line/device
• knx ram <R> - Create group Data Base for R groups. The operation will take effect after reboot. Use this operation only if default group Data Base is too small. The current Data Base usage can be seen in knx command.
• knx funcs - Print all available group functions.
• knx group - List existing KNX groups (linkage status)
• knx group <GA> - List existing KNX groups (linkage status) for the given group address
• knx group <GA> <func> <direction> <UID> - Create new KNX group, i.e. link KNX group address <GA> with CoolMasterNet function and UID. <GA> can be in the form of Main/Mid/Sub or Main/Sub, direction: < - CoolMasterNet input, > - CoolMasterNet output.
• knx group dellall - Delete all KNX groups
• knx group -<G> - Delete KNX group number <G>. Group numbers displayed in the list of existing groups.

name used in command	Full Name	Values	Data Type	Can be sent to CoolMaster	Can be sent from CoolMaster
onoff	On/Off	0 - off, 1 - on	1.001	v	v
ST	Set Temperature	float value according to data type	9.001	v	v
RT	Room Temperature	float value according to data type	9.001	v	v
Mode	Mode Value	0 - cool, 1 - heat, 2 - auto, 3 - dry, 5 - fan	5.010	v	v
M	Mode	0 - cool, 1 - heat	1.001	v	v
Fstep	Fan speed step	0 - previous fan speed, 1 - next fan speed (according to fspeed properties*)	1.001	v	v
F8	Fan speed count	value is a sequential fan speed regarding allowed fan speeds in fspeed properties*	5.010	v	v
F%	Fan speed scale %	the percent value is converted to fan speed count (previous function) and then to actual fan speed, the steps are inversed when fan speed is sent from CoolMasterNet	5.001	v	v

Examples:



Print KNX status:
>knx
KNX Line : Not Detected
KNX RAM : 7/128
OK

Create KNX group: link 10/0/1 with L1.100 as CoolMasterNet Mode input:
>knx group 10/0/1 M < L1.100
OK

List KNX group for group address 10/0/1:
>knx group 10/0/1
G000:10/0/1 [ On/Off           ] < L1.100
G001:10/0/1 [ Mode             ] < L1.100
G002:10/0/1 [ Room temperature ] > L1.100
OK

Print all available group functions:
>knx func
onoff -> On/Off            DT:{1.001} [<|>]
ST    -> Set temperature   DT:{9.001} [<|>]
RT    -> Room temperature  DT:{9.001} [<|>]
M     -> Mode              DT:{1.001} [<|>]
Fstep -> Fan speed step    DT:{1.001} [<| ]
F8    -> Fan speed count   DT:{5.010} [<|>]
F%    -> Fan speed scale % DT:{5.001} [<|>]
OK

Delete group number 2:
>knx group -2
OK



---



hdl

Synopsys

hdl

hdl delall
hdl - <UID_STRICT>
hdl + <UID_STRICT> <channel> <AC_No> <enable> <m0m1m2m3m4f0f1f2f3>
hdl eth
hdl eth <enable|disable>
hdl eth myid <ID>

DESCRIPTION:

Query or change HDL status and configuration. In format without parameters hdl command will list existing AC (Air Condition) configurations in similar way it is displayed in HDL Buspro Setup tool.

• hdl delall - delete all AC configurations
• hdl - <UID_STRICT> - delete AC configuration for specific Indoor Unit
• hdl + <UID_STRICT> <channel> <AC_No> <enable> <m0m1m2m3m4f0f1f2f3> - create AC configuration for Indoor Unit. All parameters are taken from AC configurations table in HDL Buspro Setup tool: channel - line number in AC configurations table, AC_No - integer number to bind to Indoor Unit, enable - 0 (invalid) or 1 (valid), modes - m0=cool m1=heat m2=fan m3=auto m4=dry, fan speeds - f0=auto f1=high f2=medium f3=low: +=allowed -=not allowed (see example).
• hdl eth - print HDL ethernet status and packet counters
• hdl eth <enable|disable> - enable/disable HDL over ethernet
• hdl eth myid <ID> - change Subnet and Device ID: the ID is entered in hexadecimal format, MS byte is Subnet ID, LS byte is Device ID (see example)

Examples:



List existing AC configuration:
>hdl
Ch|AC|En| Remark | CA   |CHFAD|AHML|
--- ---- ---- ---------------- -------- ------- ------
1 | 1| 1|L1.100  |L1.100|++---|-+-+|
2 | 2| 1|L1.101  |L1.101|++++-|++++|
OK

Delete AC configuration for Indoor Unit L1.101:
>hdl - L1.101
OK

Create AC configuration for Indoor Unit L2.301: channel=2, AC number=2, valid,
modes=cool heat, fan speeds=high medium:
>hdl + L2.301 2 2 1 ++----+-+
OK

Print all available group functions:
>hdl eth
status : enabled
ID : 0x01 0x63
send cntr : 0
recv cntr : 0
crc cntr : 0
OK

Enable HDL over ethernet:
>hdl eth enable
OK, Boot Required!

Change HDL ID of CoolMasterNet: Subnet ID=0x01=1, Device ID=0x63=99:
>hdl eth myid 0163
OK, Boot Required!



---



sddp

Synopsys

sddp
sddp <enable|disable|identify|offline|alive>

DESCRIPTION:

Configure Control4® Simple Device Discovery Protocol (SDDP) module. CoolMasterNet is compliant with Control4® SDDP v1.0 specification and can act as SDDP enabled device.

• Without parameters, if SDDP module was enabled and Ethernet cable connected, sddp command will list supported protocol version and packet counters.
• sddp enable - persistently enables SDDP module (effective after reset). Default state.
• sddp disable - persistently disables SDDP module (effective after reset)
• sddp identify - sends IDENTIFY message to Control4® Composer tool to add CoolMasterNet to the current projectֿ
• sddp offline - signals that CoolMasterNet is going offline
• sddp alive - signals that CoolMasterNet is online

Examples:



Enable sddp module:
>sddp enable
OK

Send IDENTIFY message:
>sddp identify
OK



---

HVAC Status and Control Commands

on

SYNOPSIS

on <UID>

DESCRIPTION:

Turn on Indoor Unit(s). EXAMPLE Turn on Indoor Unit 102 on line L1

on L1.102
OK

Turn on all Indoor Units on Line L2

on L2*
OK

Turn on all Indoor Units

on
OK

---

allon

SYNOPSIS

allon

DESCRIPTION:

Turn on all Indoor Units.

---

off

SYNOPSIS

off <UID>

DESCRIPTION:

Turn off Indoor Unit(s).

EXAMPLE

Turn off Indoor Unit 102 on line L1

off L1.102
OK

Turn off all Indoor Units on line L2

off L2*
OK

Turn off all Indoor Units

off
OK

---

alloff

SYNOPSIS

alloff

DESCRIPTION:

Turn off all Indoor Units

---

cool

SYNOPSIS

cool <UID>

DESCRIPTION:

Set Indoor Unit(s) operation mode to cool.

EXAMPLE

Set Indoor Unit 102 on line L1 to cool mode

cool L1.102
OK

Set all Indoor Units on line L2 to cool mode

cool L2*
OK

Set all Indoor Units to cool mode

cool
OK

---

heat

SYNOPSIS

heat <UID>

DESCRIPTION:

Set Indoor Unit(s) operation mode to heat.

EXAMPLE

Set Indoor Unit 102 on line L1 to heat mode

heat L1.102
OK

Set all Indoor Units on line L2 to heat mode

heat L2*
OK

Set all Indoor Units to heat mode

heat
OK

---

fan

SYNOPSIS

fan <UID>

DESCRIPTION:

Set Indoor Unit(s) operation mode to fan.

EXAMPLE

Set Indoor Unit 102 on line L1 to fan mode

fan L1.102
OK

Set all Indoor Units on line L2 to fan mode

fan L2*
OK

Set all Indoor Units to fan mode

fan
OK

---

dry

SYNOPSIS

dry <UID>

DESCRIPTION:

Set Indoor Unit(s) operation mode to dry.

EXAMPLE

Set Indoor Unit 102 on line L1 to dry mode

dry L1.102
OK

Set all Indoor Units on line L2 to dry mode

dry L2*
OK

Set all Indoor Units to dry mode

dry
OK

---

auto

SYNOPSIS

auto <UID>

DESCRIPTION:

Set Indoor Unit(s) operation mode to auto.

EXAMPLE

Set Indoor Unit 102 on line L1 to auto mode

auto L1.102
OK

Set all Indoor Units on line L2 to auto mode

auto L2*
OK

Set all Indoor Units to auto mode

auto
OK

---

temp

SYNOPSIS

temp <UID> <±><temp>

temp <UID> <temp.d>

DESCRIPTION:

Change Indoor Unit(s) Set Temperature.

· In form temp [UID] [±]<temp> parameter must be decimal natural number.
Command can work in relative or absolute manner.
If plus '+' or minus '-' sign precedes parameter it's value will be added to or substituted from current Set Temperature value.
Otherwise Set Temperature will be set to the given value.

· In form temp <UID><temp.d> Set Temperature parameter <temp.d> is a fractal number with 0.1 precision. (In this case preceding +|- are not allowed).
If HVAC System does not support 0.1 precision for the Set Temperature (see table below), the final value will be nearest supported value.

AC Type	Set Temperature Precision
DK	0.1ºC
ME	0.1ºC
SM	0.1ºC
FJ	0.3ºC
SA	0.5ºC
TO	0.5ºC
PN	0.5ºC
MH	0.5ºC
LG	0.5ºC
HT	1ºC
GR	1ºC
MD,CG,KT,TR	1ºC
TI	1ºC
MT	1ºC
BSM	1ºC

The deg setting (see set command) defines which temperature scale Celsius or Fahrenheit is used for and parameters value.

EXAMPLE

Set Indoor Unit 102 on line L1 Set Temperature to 23º

temp L1.102 23
OK

Decrease all Indoor Units on line L2 Set Temperature by 2º

temp L2* -2
OK

Set all Indoor Units on line L2 Set Temperature to 24.5º

temp L2* 24.5
OK

Set all Indoor Units Set Temperature to 22º

temp 22
OK

---

feed

SYNOPSIS

feed <UID> <±><temp>

feed <UID> <temp.d>

DESCRIPTION:

Provides Ambient Temperature suggestion to Indoor Unit(s) referenced by UID. If is zero CoolMaster Product Line will stop suggesting Ambient Temperature. Suggested Ambient Temperature is not persistent and is lost (set to zero) after power reset of CoolMaster Product Line.

· In form feed <UID> <±><temp> parameter <temp> must be decimal natural number.
Command can work in relative or absolute manner.
If plus '+' or minus '-' sign precedes parameter it's value will be added to or substituted from the current Ambient Temperature suggested value.
Otherwise it will be set to the given value.

· In form feed <UID><temp.d> parameter <temp.d> is a fractal number with 0.1 precision. (In this case preceding +|- are not allowed).
It is not guaranteed that the Ambient Temperature reported by Indoor Unit will be equal to the suggested Ambient Temperature provided with feed command.


The feed command is supported for the following AC types:

Line Type	Model	Firmware Version
ME
PBM
SI		0.4.7
EL
GRNS
UMM	GS538/9, SMT-HOA

EXAMPLE

Suggest Ambient Temperature of 23.5º to Indoor Unit L1.102

feed L1.102 23.5
OK

Decrease suggested Ambient Temperature for all Indoor Units on line L2 by 2º

feed L2* -2
OK

---

fspeed

SYNOPSIS

fspeed <UID>

DESCRIPTION:

Set Indoor Unit(s) Fan Speed to:

· v, V - very low or quiet · l, L - low

· m, M - medium

· h, H - high

· t, T - top or very high

· a, A - auto

Not all Indoor Units support Fan Speed options listed above.
Specific Fan Speeds support depend on specific Indoor Unit capabilities.
If requested Fan Speed is not supported by Indoor Unit(s) fspeed command will have no effect.

EXAMPLE

Set Indoor Unit 102 on line L1 Fan Speed to low

fspeed L1.102 l
OK

Set all Indoor Units on Line L2 Fan Speed to high

fspeed L2* h
OK

Set all Indoor Units Fan Speed to medium

fspeed m
OK

---

fspeed

SYNOPSIS

fspeed <UID> <v,V|l,L|m,M|h,H|t,T|a,A>

DESCRIPTION

Set Indoor Unit(s) Fan Speed to:

· v, V - very low or quiet

· l, L - low

· m, M - medium

· h, H - high

· t, T - top or very high

· a, A - auto

Not all Indoor Units support Fan Speed options listed above. Specific Fan Speeds support depend on specific Indoor

Unit capabilities. If requested Fan Speed is not supported by Indoor Unit(s) fspeed command will have no effect.

EXAMPLE

Set Indoor Unit 102 on line L1 Fan Speed to low

fspeed L1.102 l
OK

Set all Indoor Units on Line L2 Fan Speed to high

fspeed L2* h
OK

Set all Indoor Units Fan Speed to medium

fspeed m
OK

swing

SYNOPSIS

swing [UID] <h|v|a|3|4|6|x>

DESCRIPTION

Set Indoor Unit(s) louver position to:

· h - horizontal

· v - vertical

· a - auto (swing)

· 3 - 30º

· 4 - 45º

· 6 - 60º

· - (minus) - stop swing

Not all HVAC Manufacturers and specific Indoor Units support louver position options listed above or have louver position control at all.
Louver control is capability of the specific Indoor Unit type. If requested louver position is not supported by Indoor Unit, swing command will have no effect or will return an error.

Supported options per HVAC Manufacturer

HVAC Manufacturer	Acronym	h	v	a	3	4	5	-
Daikin	DK
Mitsubishi Electric	ME
Sanyo	SA	+	+	+	+	+	+	+
Toshiba	TO	+	+	+	+	+	+	+
Panasonic	PN	+	+	+	+	+	+	+
Hitachi	HT
LG	LG
Mitsubishi Heavy	MH
Gree	GR
Midea	MD
Kentatsu	KT
Trane	TR
Chigo	CG
Fujitsu	FJ
Samsung	SM
Tadiran Inverter	TI
Meitav	MT
Haier	HA
Bluestar	BSM

EXAMPLE

Set Indoor Unit 102 on line L1 louver to horizontal position

swing L1.102 h
OK

Set all Indoor Units louver to 30º position

swing 3
OK

filt

SYNOPSIS

filt <UID>

DESCRIPTION:

Reset Filter Sign.

EXAMPLE

Reset Filter Sign on Indoor Unit 102 on line L1

filt L1.102
OK

Reset Filter Sign on all Indoor Units on Line L2

filt L2*
OK

Reset Filter Sign on all Indoor Units

filt
OK

ls

SYNOPSIS

ls [UID]

ls+

DESCRIPTION

Get Indoor Unit(s) status list.

In case UID is omitted, ls command will list all visible Indoor Units connected to CoolMaster Product Line, while ls+ command will list all Indoor Units including the invisible (see props command) ones.

Indoor Unit status line has strict format, so that every status field is printed at fixed position.

· Indoor Unit status line with Celsius temperature scale

0123456789012345678901234567890123456

L2.102 OFF 20C 27C High Cool OK - 0

· Indoor Unit status line with Fahrenheit temperature scale

012345678901234567890123456789012345678

L2.102 OFF 120F 127F High Cool OK - 0

Field	Position in string		Values
	Celsius	Fahrenheit
UID	0-5		LN.XYY
On/Off	7-9		ON,OFF
Set Temperature	11-12	11-13	nnC or nnnF
Room Temperature	15-16	16-18	nnC or nnnF
Fan Speed	19-22	21-24	VLow, Low, Med, High, Top, Auto, ...
Operation Mode	24-27	26-29	Cool, Heat, Fan, Dry, Auto, ...
Indoor Failure Code	29-32	31-34	OK - no failure, else Indoor Failure Code
Filter Sign	34	36	- or # (Filter Sign)
Demand	36	38	0 or 1

EXAMPLE

ls L2
L2.101 ON 25C 27C Low Cool OK - 1
L2.102 OFF 20C 27C High Cool OK - 0
OK

ls L2.101
L2.101 ON 25C 27C Low Cool OK - 1
OK

ls
L1.101 ON 25C 24C Low Cool OK - 1
L1.102 ON 22C 23C Med Cool OK - 0
L2.101 ON 25C 27C Low Cool OK - 1
L2.102 OFF 20C 27C High Cool OK - 0
OK

ls2

SYNOPSIS

ls2 [UID]

DESCRIPTION

Same as ls, but with decimal precision in temperatures.

Get Indoor Unit(s) status list. If UID is omitted all Indoor Units connected to CoolMaster Product Line will be listed.

Indoor Unit status line has strict format, so that every status field is printed in fixed position.

· Indoor Unit status line with Celsius temperature scale

01234567890123456789012345678901234567890

L1.102 ON 16.9C 27.0C High Cool OK - 0

· Indoor Unit status line with Fahrenheit temperature scale

0123456789012345678901234567890123456789012

L1.102 ON 062.4F 080.6F High Cool OK - 0

Field	Position in string		Values
	Celsius	Fahrenheit
UID	0-5		LN.XYY
On/Off	7-9		ON,OFF
Set Temperature	11-14	11-15	nn.nC or nnn.nF
Room Temperature	17-20	18-22	nn.nC or nnn.nF
Fan Speed	23-26	25-28	VLow, Low, Med, High, Top, Auto, ...
Operation Mode	28-31	30-33	Cool, Heat, Fan, Dry, Auto, ...
Indoor Failure Code	33-36	35-38	OK - no failure, else Indoor Failure Code
Filter Sign	38	40	- or # (Filter Sign)
Demand	40	42	0 or 1

query

SYNOPSIS

query <UID STRICT> <o|m|f|t|h|e|a|s>

DESCRIPTION

Query one of the operation conditions of given Indoor Unit. <UID STRICT> parameter must define single Indoor Unit in form Ln.XYY or XYY. Resulting value is printed as alpha-numeric value according to the table below.

Query	Operation Condition	Value
o	On/Off	0 - Off, 1 - On
m	Operation Mode	0 - Cool 1 - Heat 2 - Auto 3 - Dry 4 - Haux 5 - Fan
f	Fan Speed	0 - Low 1 - Medium 2 - High 3 - Auto 4 - Top
t	Set Temperature	Natural
e	Failure Code	0 - No failure, otherwise failure code same as in ls command
a	Ambient Temperature	Natural
h	Set Temperature	0.01º Precision
s	Louver Position	0 - No Louver Control a - auto (swing) h - horizontal 3 - 30º 4 - 45º 6 - 60º v - vertical x - stop (swing)

EXAMPLE

query L1.100 o
1
OK

query L1.100 m
0
OK

query L1.100 t
25
OK

query L1.100 a
27
OK

query L1.100 f
2
OK

query L1.100 e
U4
OK

query L1.100 e
0
OK

query L1.100 h
20.50
OK

wh

SYNOPSIS

wh <UID STRICT> <h|e|w|a|t<+|-|temp>|b<+|->>

wh <UID STRICT>

DESCRIPTION

Control Water Heater Unit. When letter is omitted special water heater status is displayed.

Letter	Operation	Compatibility
		ME	P1P2 (Altherma)
h	Heat Mode	+
e	Eco Mode	+
w	Hot Mode	+
a	Anti-freeze Mode	+
t	Tank (+=on,-=off, temp=set point)		+
b	Booster (+=on,-=off)		+
"no letter"	Print status		+

ON/OFF control of the Water Heater Unit is performed with regular on and off commands.

EXAMPLE

Set Hot Mode on Water Heater Unit 101 on Line L1

wh L1.101 w
OK

Set Altherma Unit 000 on Line L4 Tank Set Temperature to 40º

wh L4.000 t40
OK

Turn on Tank of Altherma Unit 000 on Line L4

wh L4.000 t+
OK

Turn on Tank Booster of Altherma Unit 000 on Line L4

wh L4.000 b+
OK

Print Tank status of Altherma Unit 000 on Line L4

wh L4.000
L4.000 ON 40C 35C +
OK

main

SYNOPSIS

main [Ln]

main <UID STRICT> <0|1>

DESCRIPTION

Change or query Daikin Indoor Units main RC setting. Without parameters main command will list main RC setting of all Daikin Indoor Units on all lines. Line number Ln can be indicated to list Daikin Indoor Units on specific line.

Main RC setting	Description
+	Indoor Unit is main RC
-	Indoor Unit is not main RC
?	No main RC in the system

 Notes:

To set Indoor Unit as main RC the previous main RC have to be unset first.

EXAMPLE

List main RC setting of Indoor Units on line L2

main L2
L2.200 -
L2.201 -
L2.202 -
L2.203 -
L2.204 -
L2.205 -
L2.206 +
OK

List main RC setting of all Indoor Units

main
L1.300 -
L1.301 +
L1.302 -
L2.100 ?
L2.101 ?
L2.102 ?
L2.103 ?
OK

Unset main RC: Indoor Unit 206 on line L2

main L2.206 0
OK

Set new main RC: Indoor Unit 201 on line L2

main L2.201 1
OK

vam

SYNOPSIS

vam <UID STRICT> <a|b|x|n|l|L|h|H|s|t|A|+|->

vam

vam <UID STRICT>

DESCRIPTION

Control Ventilation Unit.

· vam <UID STRICT> - get Ventilation Unit status.

· vam - get all Ventilation Units status.

Letter	Operation	Compatibility
		DK	ME	LG	SM
a	Auto Mode	+	+	+	+
b	Bypass (Bps) Mode	+	+		+
x	Heat Exchange (HExc) Mode	+	+	+	+
n	Normal Mode			+
S	Sleep Mode				+
l	Low Fan	+	+	+	+
L	Low Fan with Fresh-Up	+
h	High Fan	+	+	+	+
H	High Fan with Fresh-Up	+
s	Super High Fan			+	+
t	Top Fan		+
A	Auto Fan		+	+
+	Turn on ventilation unit*				+
-	Turn off ventilation unit*				+

ON/OFF control of the Ventilation Unit is performed with regular on and off commands.

There are, though, dual units, that consist of Air Condition Unit and Ventilation unit. In this case on and off

commands will control the Air Condition Unit, while vam <UID STRICT> +/vam <UID STRICT> - will control the Ventilation Unit.

EXAMPLE

Set Heat Exchange mode on Ventilation Unit 101 on Line L1

vam L1.101 x
OK

lock

SYNOPSIS

lock [UID STRICT]

lock [UID] <-|+>[o|m|t|n]

DESCRIPTION

Most of the HVAC systems have a lock (inhibit) functionality to prevent user from changing Indoor Unit status via wired or remote local controller. Same functionality is provided by CoolMaster Product Line with lock command.

· lock <UID STRICT> - Query locks for all or specific Indoor Unit.

<UID STRICT> defines specific Indoor Unit in form Ln.XYY

Lock options	Operation
+	Full Lock: On/Off, Mode, Set Temperature
-	Full Unlock: On/Off, Mode, Set Temperature
+o	Lock On/Off
-o	Unlock On/Off
+m	Lock Mode
-m	Unlock Mode
+t	Lock Set Temperature
-t	Unlock Set Temperature
+n	Lock On
-n	Unlock On

Different Lock options can be combined in one command (see examples below)

COMPATIBILITY

AC Type	Lock Options
	Full Lock	On/Off	Mode	SetPoint	On
DK	+	+	+	+	+
SA		+	+	+
ME		+	+	+
LG	+		+	+
SM	+		+
TO		+	+	+
MH	+	+
HT	+		+
SI	+	+	+	+
FJ		+	+	+
MD,TR,KT,CG	+		+
HA		+	+	+
GMV5	+	+	+	+
BS		+	+	+

EXAMPLE

Query locks for Indoor Unit L1.103 (SA/TO/PN)

lock L1.103
-o -m -t
OK

Query locks for Indoor Unit L2.101 (MD/KT/TR/CG/HT)

lock L2.101
+
OK

Query locks for Indoor Unit L1.100 (DK)

lock L1.100
-o -m -t +n
OK

Lock Mode change and Unlock Set Point change

lock L1.102 +m-t
OK

Full Lock

lock L5.002 +
OK

inhibit

SYNOPSIS

inhibit [UID] <0|1>

DESCRIPTION

CoolMaster Product Line will force Indoor Unit(s) to OFF state, when inhibit is set to 1(enabled). Setting

inhibit back to 0(disabled) restores Indoor Unit(s) ON/OFF state. Indoor Unit will be turned ON if it was ON

before the inhibit.

EXAMPLE

Inhibit Indoor Unit 102 on line L1. Unit will be forced OFF.

inhibit L1.102 1
OK

Remove Inhibit from Indoor Unit 102 on line L1

inhibit L1.102 0
OK

Inhibit all Indoor Units

inhibit 1
OK

Remove Inhibit from all Indoor Units

inhibit 0
OK

group

SYNOPSIS

group

group <UID1 STRICT> <UID2 STRICT>

group delall

group -G

group ram R

DESCRIPTION

Control group operation in CoolMaster Product Line. Grouping of two Indoor Units means that second Indoor Unit will follow ON/OFF, Mode, Fan Speed, Set Temperature and Swing settings of the first Indoor Unit.

· In format without parameters group will list existing groups

· group delall - delete all groups

· group -G - delete group number G (group numbers displayed in the list of existing groups)

· group <UID1 STRICT> <UID2 STRICT> - create new group, where UID2 will follow UID1

· group ram R - create group Data Base for R groups. The operation will take effect after reboot. Use this operation only if default group Data Base is too small.

EXAMPLE

Group Indoor unit L5.001 with L5.002

group L5.001 L5.002
OK

List existing groups

group
G000: L5.001 --> L5.002
G001: L5.001 --> L5.003
OK

Delete group number 0

group -0
OK

Delete all groups

group delall
OK

Create group Data Base for 50 groups

group ram 50
OK, Boot Required!

va

SYNOPSIS

va

va auto

va delall

va ram R

va - <UID STRICT|VA>

va + <UID STRICT> <VA>

DESCRIPTION

In order to simplify translation of the UID into Modbus object address, CoolMaster Product Line uses VA (Virtual

Address), associated with UID. Each UID can have none, one or a number of associated VA's, but each VA can be

associated only with one UID. VA's are plain numbers starting from 001 (decimal). Virtual Address concept is

applicable to CoolGate 5 and ModBus IP.

· In format without parameters va command will list all VA associations and their ModBus addresses in hexadecimal

and decimal format.

· va auto - CoolMaster Product Line will automatically associate VA's with existing (visible with ls command)

UID's. This will delete previous associations

· va delall - delete all VA associations

· va ram R - create VA Data Base for R associations. The operation will take effect after reboot. Use this operation

only if default VA Data Base is too small.

· va - <UID STRICT|VA> - delete all VA associations with specific Indoor Unit or delete specific VA association

· va + <UID STRICT> <VA> - add new VA association

EXAMPLE

Auto associate all existing Indoor Units

va auto
OK

Associate VA 007 with Indoor Unit 100 on line L1

va + L1.100 7
OK

List all VA associations

va

L1.100 --> 001 [Hex: 0x0011 | Dec: 0017]
+-> 007 [Hex: 0x0071 | Dec: 0113]
L1.101 --> 002 [Hex: 0x0021 | Dec: 0033]
L2.101 --> 003 [Hex: 0x0031 | Dec: 0049]
L2.102 --> 004 [Hex: 0x0041 | Dec: 0065]
L2.103 --> 005 [Hex: 0x0051 | Dec: 0081]
L2.104 --> 006 [Hex: 0x0061 | Dec: 0097]
OK

Delete all VA associations of Indoor Unit 100 on line L1

va - L1.100
OK

Delete VA association number 4

va - 4
OK

Delete all VA associations

va delall
OK

Create VA Data Base for 200 associations

va ram 200
OK, Boot Required!
