This article applies to CooLinkBridge devices
Features
• Seamless integration of HVAC* systems with Home Automation and BMS controllers.
• Bi-directional communication allowing full control & monitoring of connected HVAC* systems.
• Integration protocols: BACnet MSTP/IP, Modbus TCP/RTU, ASCII
• LCD screen to setup, monitor and configure connected units
• Cloud based HVAC* Control Mobile App — remote access by Smartphone, Tablet and Desktop
• Device Warranty – 3 years**
Technical Specifications | |
Power | |
| Power (External Power adapter included) | 24 - 9 VDC (120VAC 60 Hz /220VAC 50 Hz) |
| Consumption | 1 Watt |
Size and Weight | |
| Dimensions (H x W x D) (inches/mm) | 2.56 x 4.64 x 1.25 / 65 x 118 x 32 |
| Weight (lbs/Kg) | 0.26 / 0.12 |
Operating Conditions and Installation
| |
| Surrounding Temperature Limit -10° C to +60° C / +14 F to +140 F | |
| Humidity (%) | 0% to 96% |
| Maximum allowable wiring RS485 (ft/m) | 3280/1000 |
| Mounting Magnets, Screws | |
External Communication Cabling | |
| HVAC communication (Brand dependent) |
2-3 wires shielded cable Follow guidance of HVAC manufacturer |
| RS485 for Modbus-RTU/BACnet-MSTP | Shielded Twisted pair AWG 20-24 |
Certifications and Standards |
CE, FCC, BTL |
Interfaces | |
| RS 485 | BACnet MSTP, Modbus RTU |
| Ethernet | RJ45, 10/100Mbps |
| USB A | Host |
| USB mini | Debug |
* Manufacturer dependent
** See CoolAutomation Warranty Terms and Conditions
Dimensional drawings:

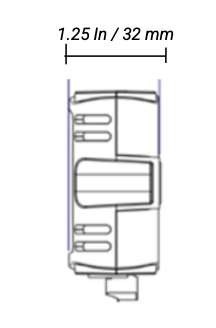

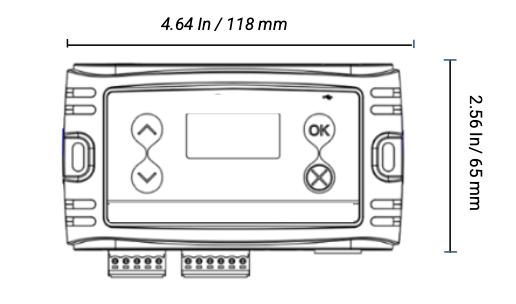

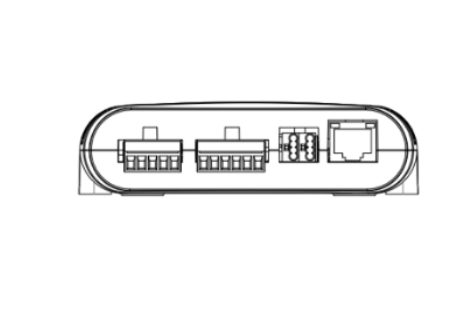

Front View Side View Bottom View

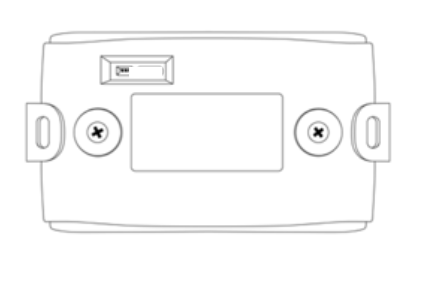

Back View
