How to link Room Temperature with AC indoor - feed

To link external measured room temperature (usually by 3rd party thermostat) with indoor AC unit, represented by group address, follow these steps:

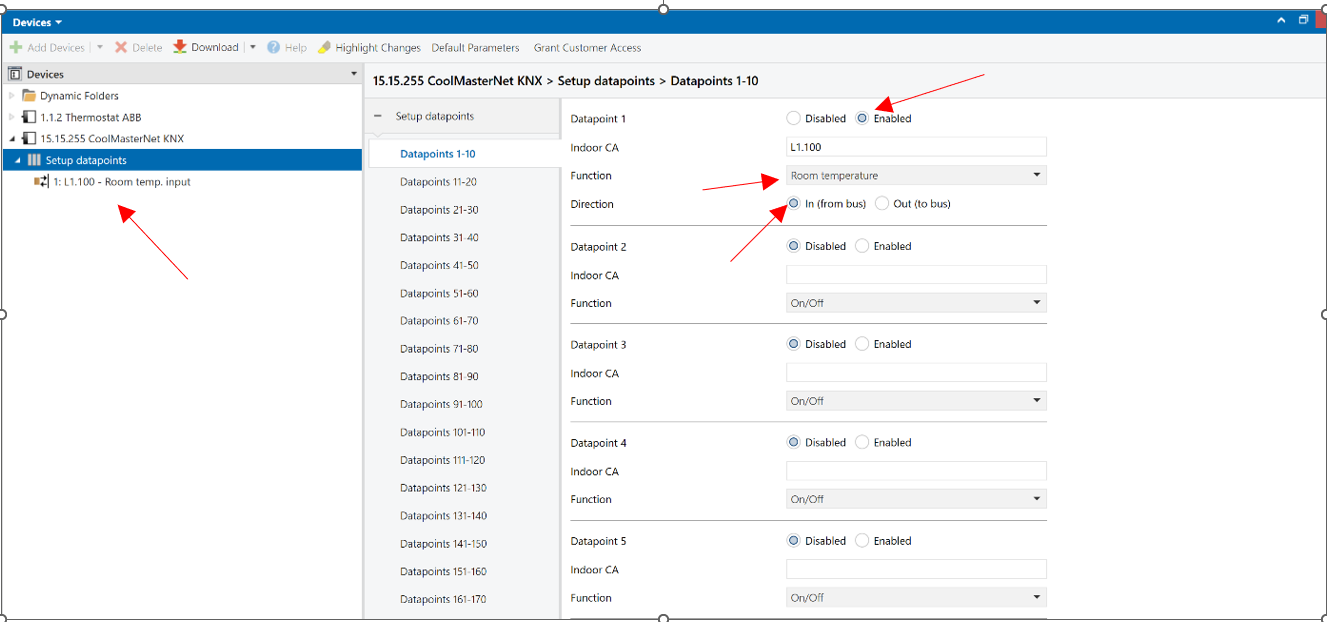

1. Select AC unit and data point type

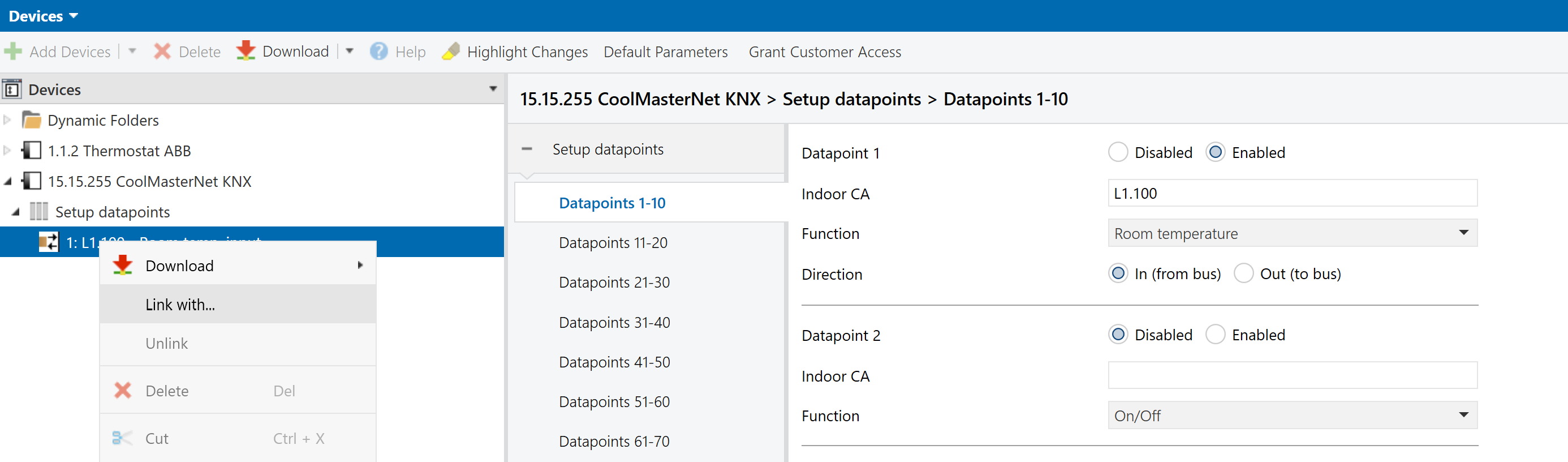

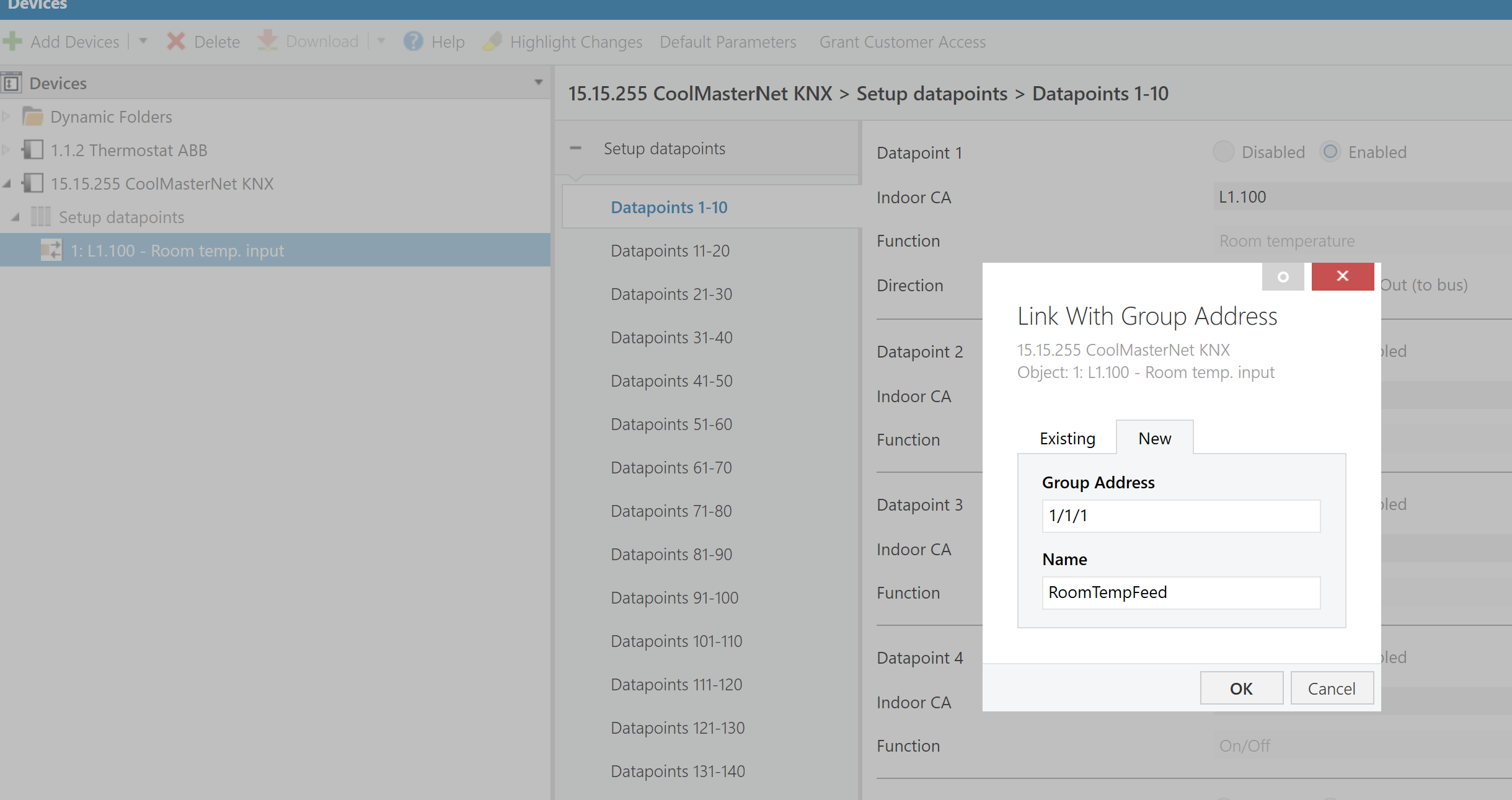

2. Link with group address

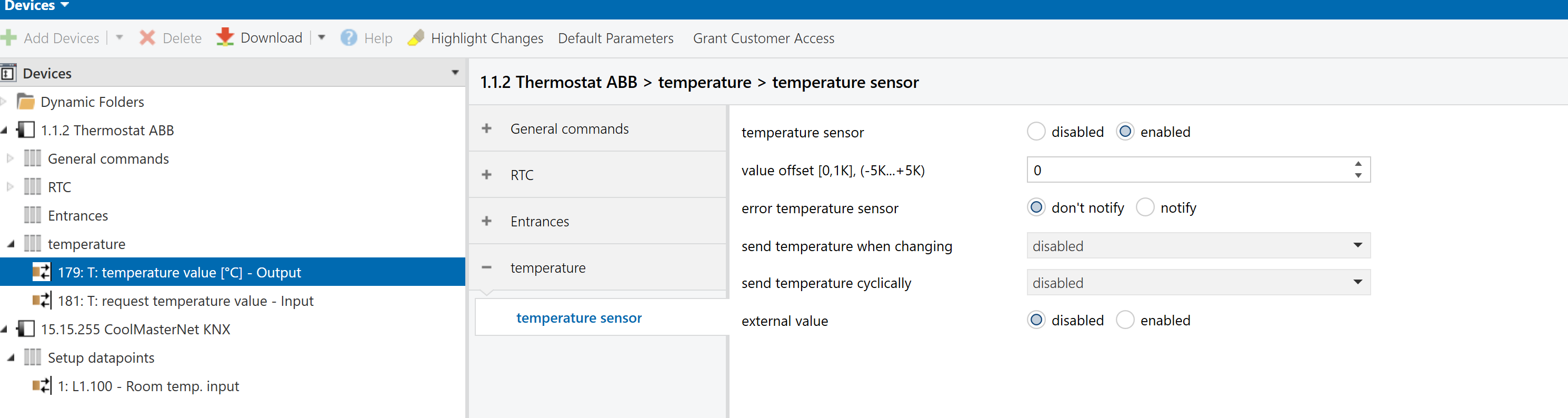

3. Select Room Temperature resource ( 3rd party thermostat in our example) and data type

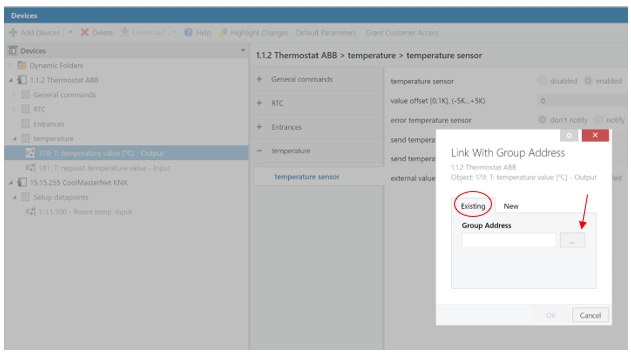

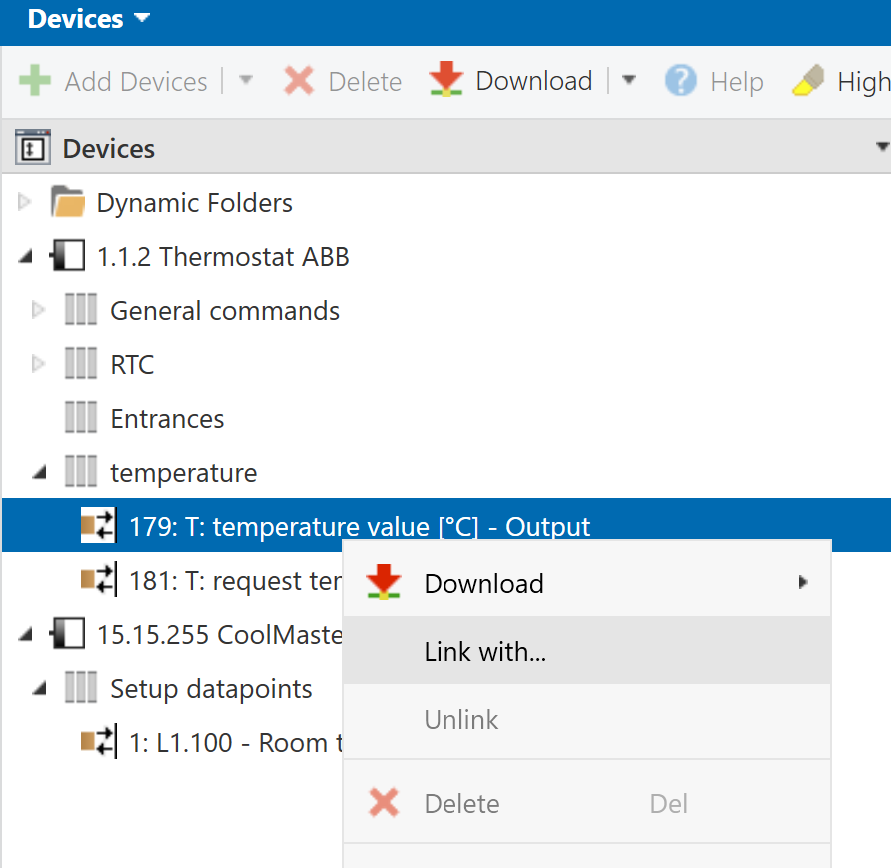

4. Link with existing group address

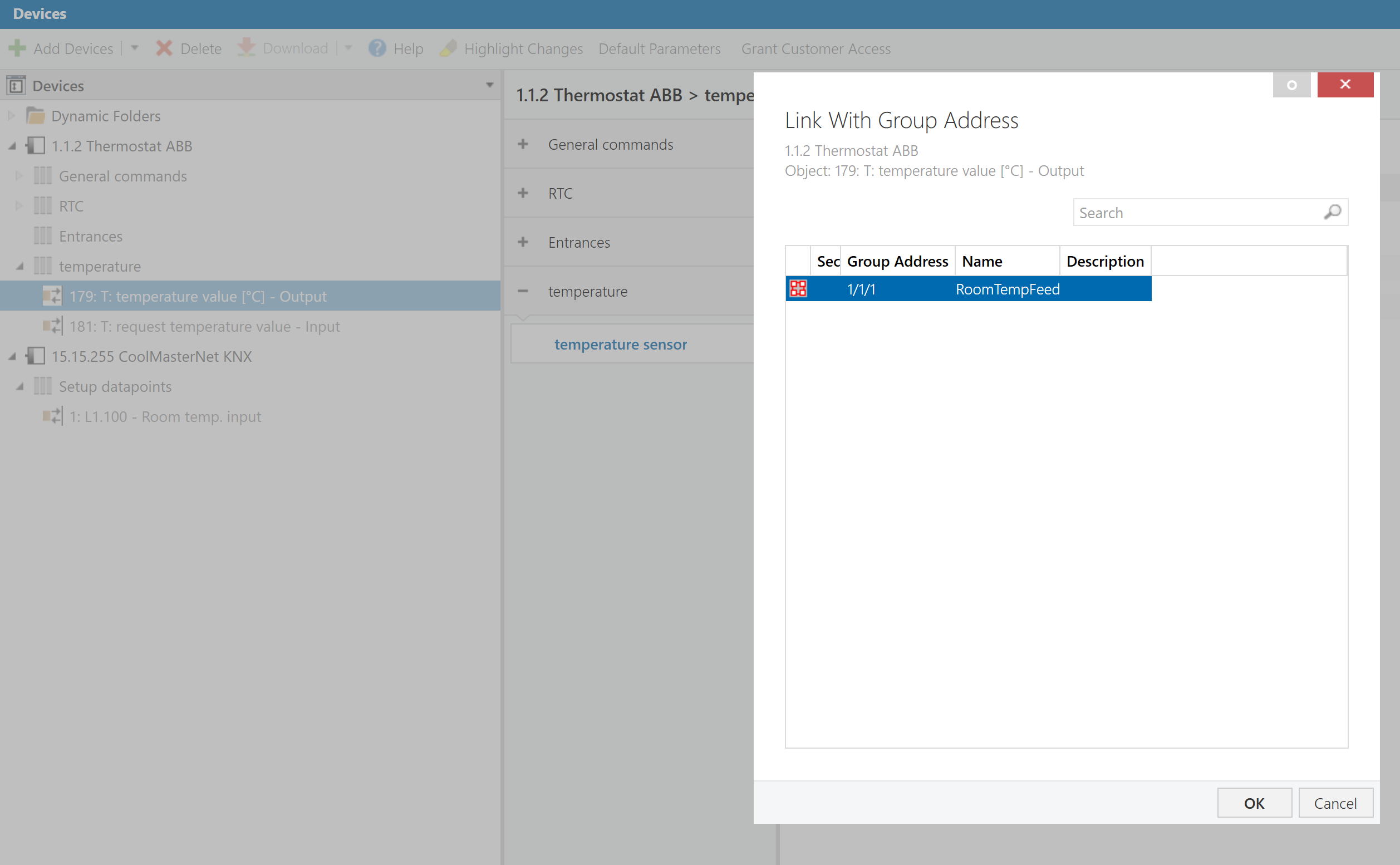

5. Check the result of linkage

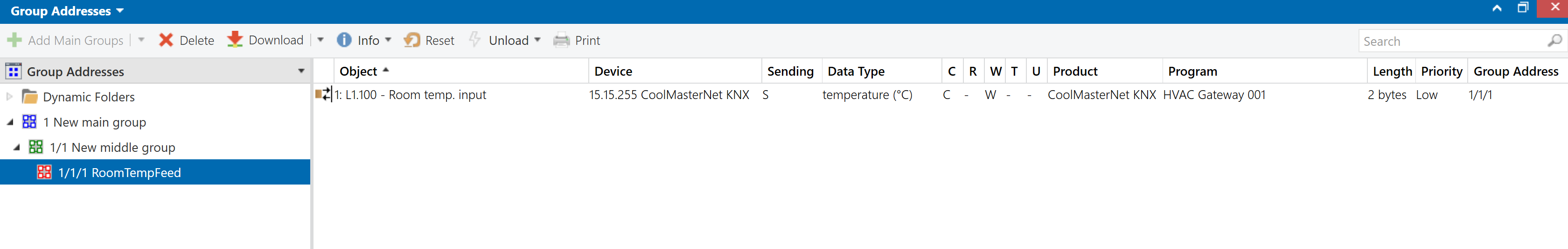

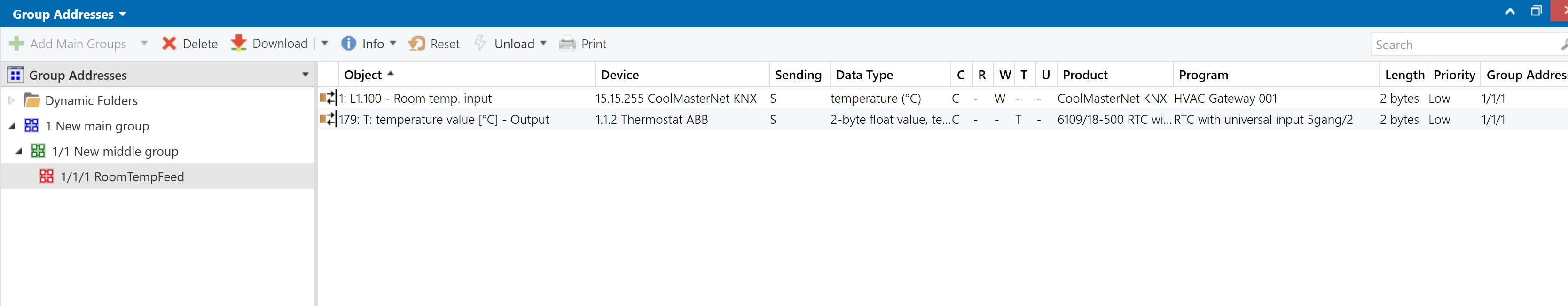

6. Group view after linking
