Daikin VRV 3,4,5 – CoolMaster EDGE Outdoor line connection

Yoram
Last update:

This article applies to the CoolMaster EDGE

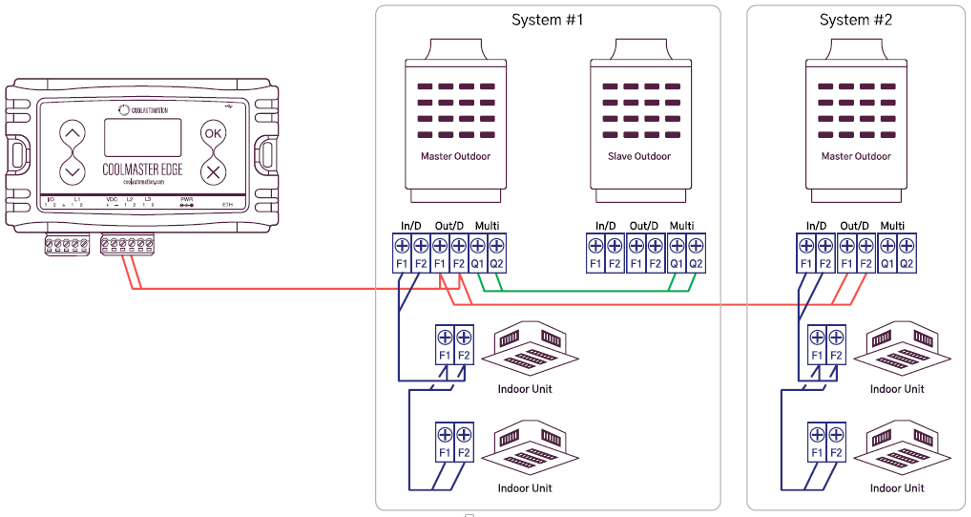

Daikin VRV – Outdoor line connection

Maximum indoor per line: 64

  • Supported device line number: L2
  • No line polarity required
  • Cable type – Follow Daikin installation instructions
  • Set line type in the EDGE device to:  DK
  • Follow Daikin instruction on how to address the units
  • Each Indoor must be set with group address for control
  • Each system and Indoor must be set with Airnet address if service is required
