Toshiba VRF – CoolMaster EDGE Service Adapter connection

Yoram
Last update:

This article applies to the CoolMaster EDGE

Toshiba VRF – Service Adapter connection
  • Adapters should be installed on the master outdoor of each system

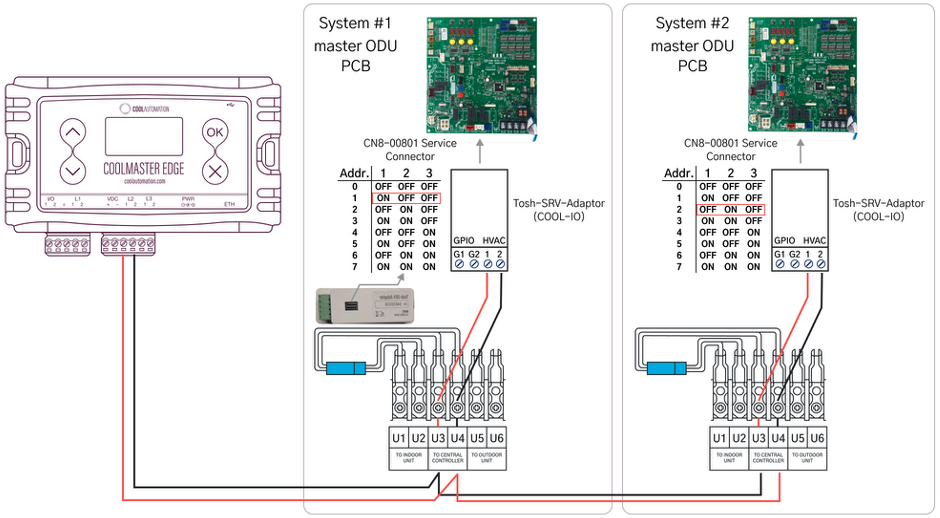

  • Each adapter should be set with a unique address using the dip switches as shown in the drawing
  • Maximum service adapters per line is limited to 8
  • It is best practice but not a must to set the adapter address the same as the system address it is connected to
  • GPIO terminals on the adapter are not  in use
