Toshiba VRF – CoolMaster EDGE Indoor line connection

Yoram
Last update:

This article applies to the CoolMaster EDGE

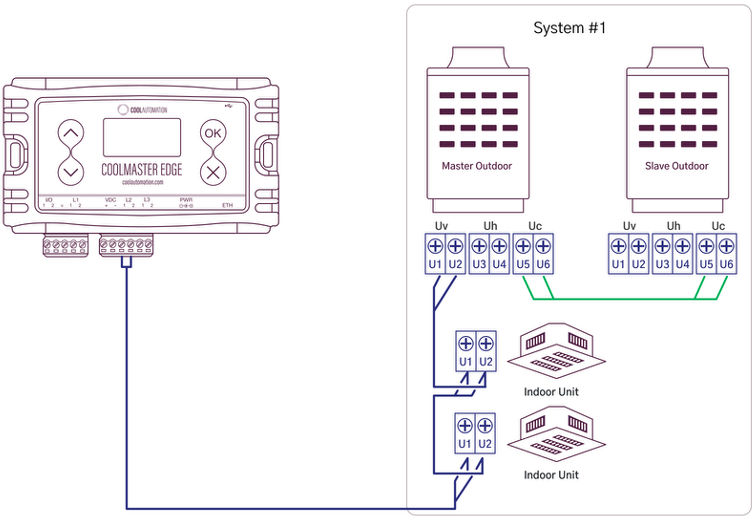

Toshiba VRF – Outdoor line connection

Maximum indoor per line: 64

  • Supported device line number: L2
  • No line polarity required
  • Cable type – Follow Toshiba's installation instructions
  • Set line type in the EDGE device to:  TO
  • Each system and Indoor must be set with unique address
  • Follow Toshiba's instruction on how to address the units
