This article applies to the CoolMaster EDGE

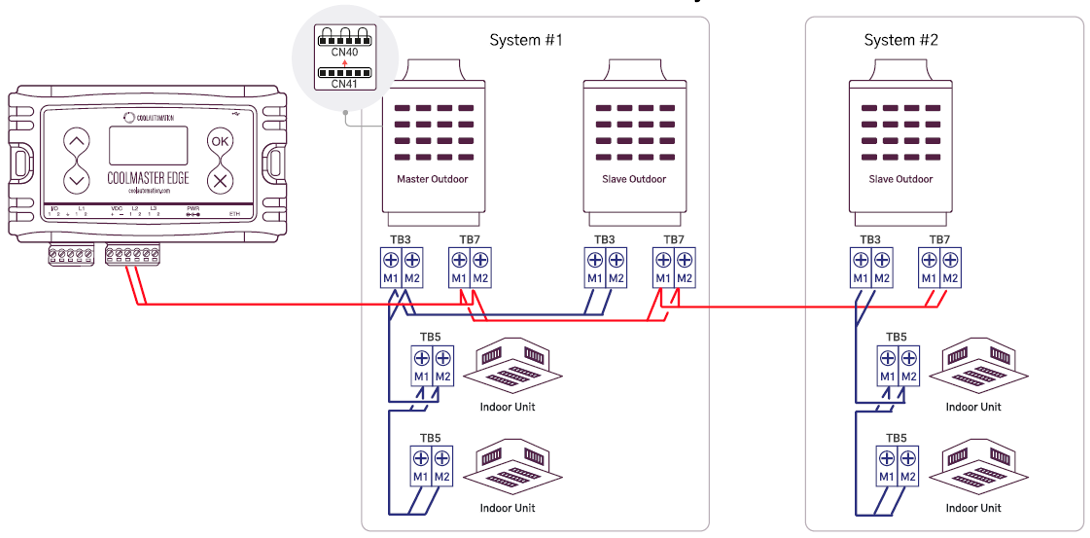

Mitsubishi Electric – Outdoor line connection

Maximum indoor per line: 50

  • Supported device line number: L2
  • No line polarity required
  • Cable type – Follow Mitsubishi Electric's installation instructions
  • Set line type in the EDGE device to:  ME
  • Each Outdoor and Indoor must be set with unique address
  • Follow ME instruction on how to address the units
  • To provide 30VDC voltage to the TB7 line move the jumper from CN41 to CN40 in only one of the outdoor units
