Mitsubishi Electric – CoolMaster EDGE Indoor line connection

Yoram
Last update:

This article applies to the CoolMaster EDGE

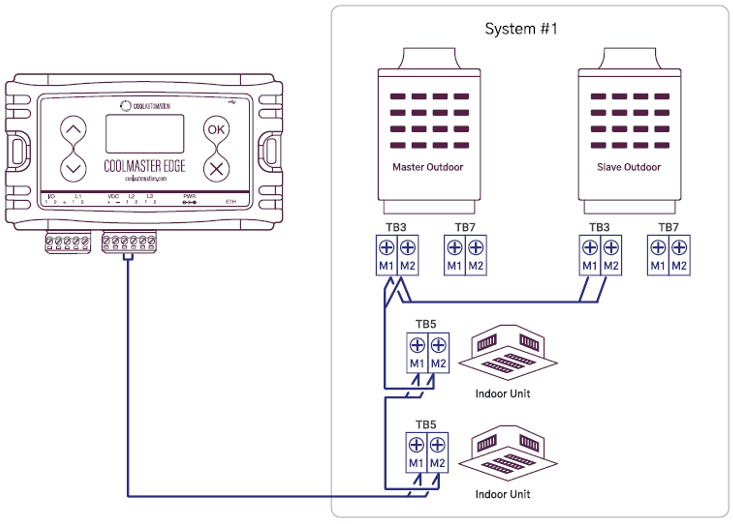

Mitsubishi Electric – Indoor line connection

Maximum indoor per line: 50

Allowed only when one system exists

  • Supported device line number: L2
  • No line polarity required
  • Cable type – Follow Mitsubishi Electric's installation instructions
  • Set line type in the EDGE device to:  ME
  • Each Outdoor and Indoor must be set with unique address
  • Follow ME instruction on how to address the units
