Fujitsu VRF – CoolMaster EDGE Outdoor line connection

Yoram
Last update:

This article applies to the CoolMaster EDGE

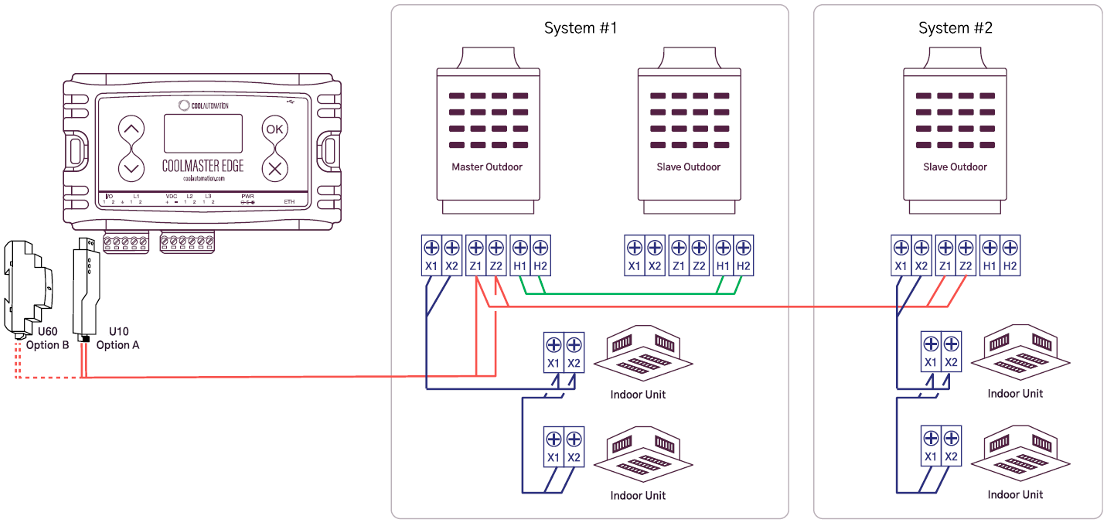

Fujitsu – Outdoor line connection

Maximum indoor per line: 128

  • Supported device line number: L8 (Type A USB)
  • No line polarity required
  • Echelon adapter U10 or U60 should be purchased from Fujitsu
  • Cable type – Follow Fujitsu installation instructions
  • Set line type in the EDGE device to:  FJ
  • Follow Fujitsu instruction on how to address the units
  • Each system and Indoor must be set with unique address
