GREE GMV5/6 VRF – CoolMaster EDGE Indoor line connection

Yoram
Last update:

This article applies to the CoolMaster EDGE

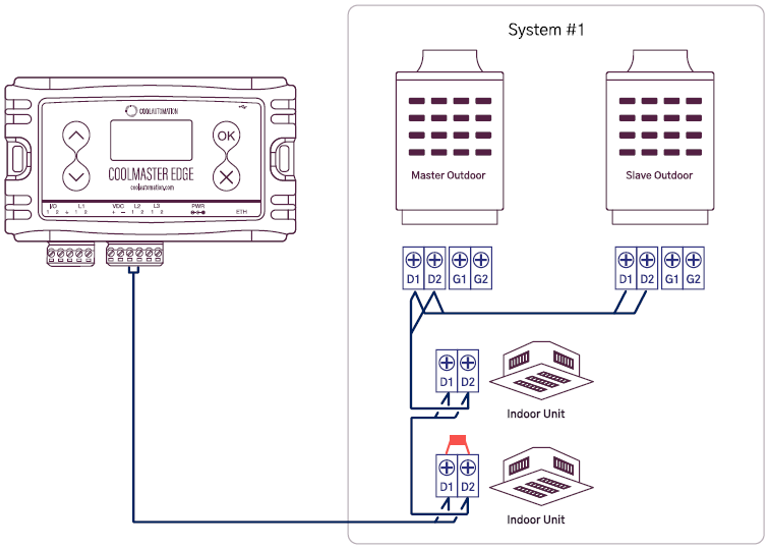

GREE GMV5/6 VRF – Indoor line connection

Maximum indoor per line: 64

  • Supported device line number: L2
  • No line polarity required
  • Cable type – Follow Gree's installation instructions
  • Set line type in the EDGE device to:  GMV5
  • Follow Gree's instruction on how to address the units
  • Each system and Indoor must be set with unique address
