Midea VRF – CoolMaster EDGE Outdoor line connection

Yoram
Last update:

This article applies to the CoolMaster EDGE

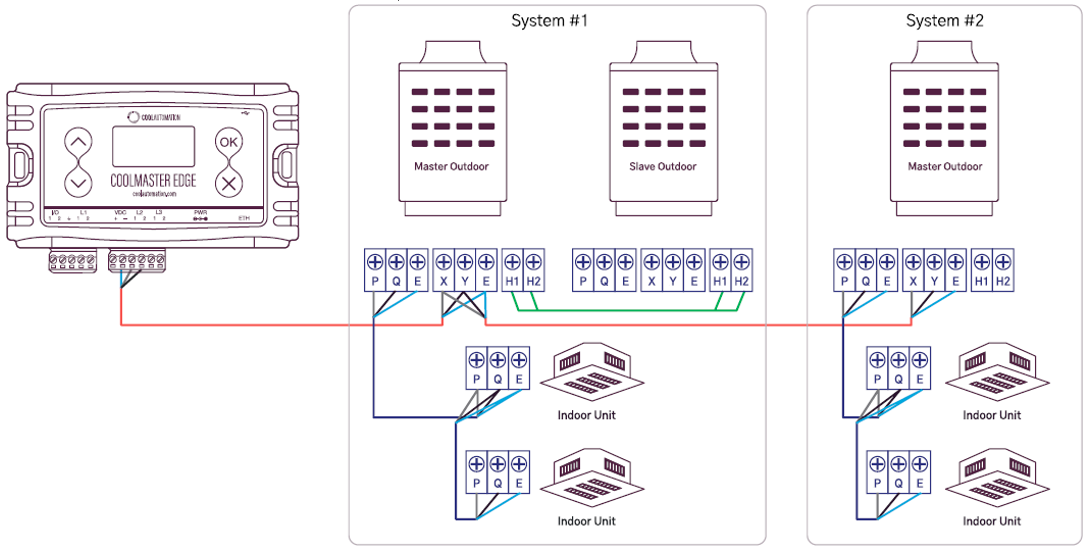

Midea – Outdoor line connection

Maximum indoor per line: 64

  • Supported device line number: L1, L2, L3
  • No line polarity required
  • Cable type – Follow Mitsubishi Electric's installation instructions
  • Set line type in the EDGE device to:  MD
  • Follow ME instruction on how to address the units
  • Each System and Indoor must be set with unique address
