How to Rename Indoor Units on the Controller (visible on the TouchScreen)

This article applies to the following CoolMaster products

  • CoolMaster
  • CoolMasterPro
  • CoolMasterNet
  • CloudBox



For renaming Indoor units on the CoolMaster screen, follow the simple steps below:

  1. You will need the Setup Utility installed on your PC
  2. Connect to the CoolMaster either via USB or over the local TCP/IP network.
  3. Open the "Console" tab
  4. Use the "props" command as instructed below



Props Command

To change the names of the indoor units on the CoolMaster screen, use the command "props" followed by indoor unit's address, followed by the keyword "name", followed by a new CustomName.

Example:

>props L1.104 name KITCHEN

>OK



To clean props (delete all), use the keyword “delall” after the props command.

Example:

>props delall

>OK



To view all props configured, simply type in the command “props”.

Example:

>props

  UID  |      Name      | Visi |      Modes      |  Fspeeds  | TLimit |

------- ---------------- ------ ----------------- ------------- --------

L1.101 | ENTRY          |  1  | c d f h      a |  l m h  a | --  -- |

L1.102 | GUESTS       |  1  | c d f h      a |  l m h  a | --  -- |

L1.103 | LIVING R       |  1  | c d f h      a |  l m h  a | --  -- |

L1.104 | KITCHEN      |  1  | c d f h      a |  l m h  a | --  -- |

L1.105 | OFFICE A      |  1  | c d f h      a |  l m h  a | --  -- |

L1.106 | OFFICE        |  1  | c d f h      a |  l m h  a | --  -- |

L1.107 | LOBBY         |  1  | c d f h      a |  l m h  a | --  -- |

>OK

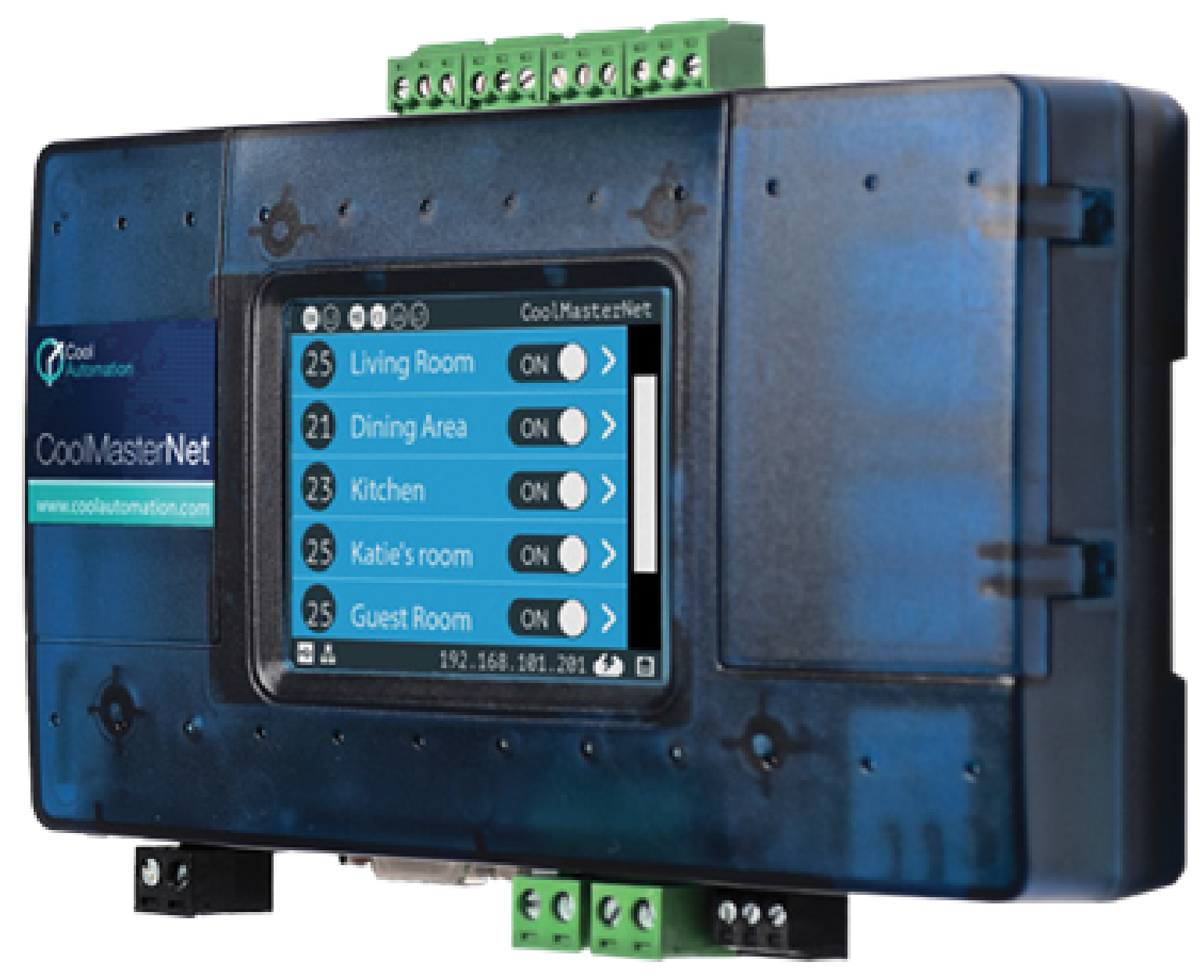

Now you will see the new Indoor unit names on the screen of your CoolMaster - as shown below.
